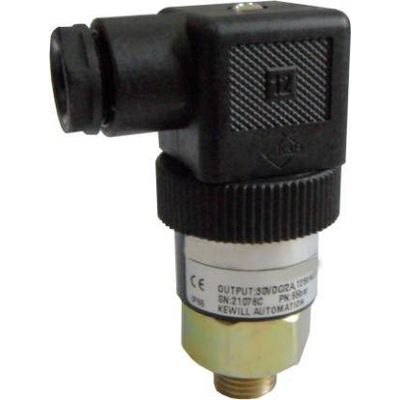

Diaphragm/Piston Pressure Switch(PPS-1550)

Gas-liquid dual-purpose type, industrial automation / mechanical equipment / air compressor industrial refrigeration and air conditioning.

1.Compact structure,adopt DIN standard plug

2.Convient connection,widely measuring range(0..400bar)

3.High overload ability(can arrived:1230 bar),high repeatability

4.With NO or NC contaction point,connection point gold-plated,large contaction point capacity.

5.Used for:the measurement of water,oil and gas pressure.

KFP30 Series

1.Accuracy: 3% set value

2.Hysteresis: 10%.20% set value(25%.35%,1%.5% optional)

3.Connection type: B12 standard connect plug

4.Output type: NO+NC connection point platinum plated

less than DC 42V , 1A

less than DC 115V , 0.15A

less than AC 42V , 3A

less than AC 125V , 3A

less than AC 250V , 0.5A

5.Medium temp: -20....80

6.Protection classic:IP65

7.Material: Diaphragm type(less than 12bar): NBR

Piston type (>12bar):Steel piston with NBR seal

Process connection:Galvanized steel/stainless steel/copper

Shell: Engineering plastic

Gas-liquid dual-purpose type, industrial automation / mechanical equipment / air compressor industrial refrigeration and air conditioning.

Main using field: industrial automation / mechanical equipment / air compressor industrial refrigeration and air conditioning.
