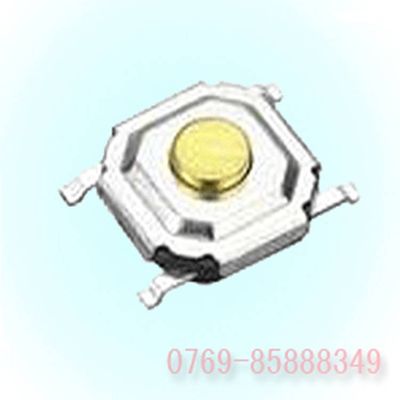

Tact switch,4*4 Push button switch

Condition for Reflow

1. Heating method

Double heating method with infrared heater.

2. Temperature measurement



3. Temperature profile

(1) The above temperature shall be measured of the top of switch. There are cases where PC board's temperature greatly differs from that of the switch, depending on the material, size, thickness of PC board's and others. Care, should be taken to prevent the switch's surface temperature from exceeding 260u00b0C.

(2) Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is highly recommended.

Manual Soldering

ItemsCondition

Soldering temperature350u00b0C max.

Duration of soldering3s max.

Capacity of soldering iron 60W max.

1. Consult with us for availability of TACT switch washing.

2. Prevent flux penetration from the top side of the TACT switch.

3. Switch terminals and a PC board should not be coated with flux prior to soldering.

4. The second soldering should be done after the switch returns to normal temperature.

5. Use the flux with a specific gravity of min.0.81

Use Notes:

1. Terminals to carry our welding, if the load imposed on the terminal, it may be relaxed, deformation and deterioration of the electrical characterisics due to the different conditions, please note that when in use
