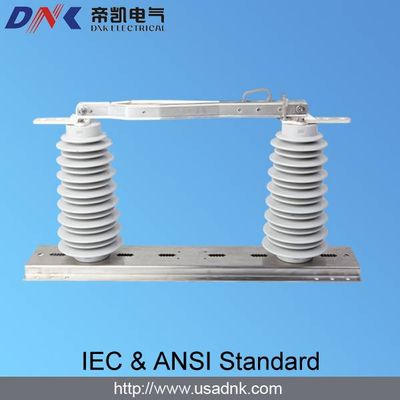

AC Outdoor High Voltage 33kV Isolator

AC outdoor high voltage 33 isolator is mainly applied in AC10~40.5kV, 50Hz power system. The ac outdoor high voltage 33kV isolator is widely used in electric power, railway, mining and oil field. And all fittings of the ac outdoor high voltage 33kV isolator not only reasonably& integrally designed but also made of high quality materials.

1 Stainless steel disc spring bowl- It makes two contact parts much more tighten, and supplies very low resistance.



2 Operation pull ring--- The lever design of pull ring and shift lock-pin ensures high breaking ability.



3 Contact methods---using surface contact instead of point contact, the device prevents too large resistance leading to heat too fast, and provides fire protection as well.

Insulator Material: Epoxy Resin

Rated Voltage: 33kV

Rated Current: 200A,400A,630A,1000A,1250A

Rated Frequency: 50Hz,60Hz

Distance between Interrupting Points: 450mm

Rated Short Time Current Withstand:25kA,20kA,16kA/4S

Rated Peak Current Withstand: 40kA,50kA

Mechanical Life: 2000 times

Creepage-distance: more than 1085mm

Standard of ac outdoor high voltage 33kV isolator



The design and test of ac outdoor high voltage 33kV isolator is complied with the following standards:



ISO9001

IEC62271-102

GB/T 11022-1999

GB 1985-2004

GB/T 5582-1993

GB/T 311.2-2002
