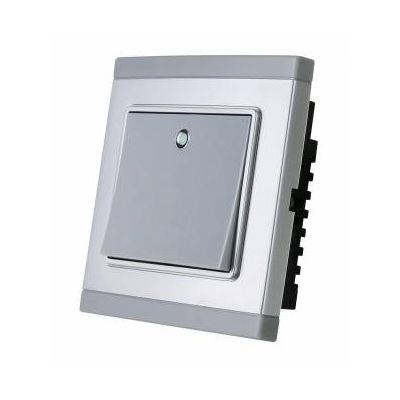

Smart RF one button wireless smart remote switch

All off function:all the lamps can be turned off by one button when go out or sleep and need not to be checked one by one which can save time and electricity.

All on function:all or a part of lamps can be turned on by one button.

Scene function:the lamp can be combined at will.For example,1,brightness when visiting,2.sweet and warm when eating,3.soft when watching TV.

Remote control:this function should be combined with remote switch and intelligent controller.These form a intelligent household system which can remote control the turn off/on of lamps and electric appliance through by any telephone and cellphone.When you go out ,you can do it as well.

Parameters



Operating voltage:AC220Vu00b110% 50/60Hz

Operating frequency:303.825/433/315MHz

Static current:<60uA

Load power: 5-800W

Remote control range:>30m

Volume:86*86*35mm

Material:surface cover (PC)+bottom box(ABS fire resistance fuel)

Wiring way:one wire(not neutral)

Features



1.using PC+ABS panel and soft touch designing,beautiful appearance and easy operation;

2.Signal wiring designing,can directly replace the mechanical switch,do not need to wiring;

3.Low-consumption standby,energy-saving and safe,not delay and quickly respond;

4.Anti-lighting,anti-electrical surge and protect the circuit effectively;

5.RF technology,non-directional,can through the wall;

6.Using millions of groups learning code and can set signal turn off/on and all turn off/on;

7.There is not interference between few switches.It can be remote controlled by one button.

model:YX-8621H

light controller/remote controller

We are a professional company on designing,developing,manufacturing and marketing of intelligent home system,fireplace control board,SMART Mobile control air conditioner/heat pump and alarm system,other consumer electronics products.

Meanwhile,we can redesign or modify the product according to your requirements.

Weu00a0canu00a0makeu00a0theu00a0stepu00a0andu00a0competitiveu00a0priceu00a0basedu00a0onu00a0ouru00a0 differentu00a0solutionu00a0andu00a0quality,weu00a0canu00a0alsou00a0provideu00a0youu00a0best valueu00a0andu00a0service at anyu00a0time.

Ifu00a0youu00a0haveu00a0anyu00a0interestu00a0inu00a0ouru00a0productsu00a0,please contactu00a0meu00a0withoutu00a0anyu00a0hesitation!u00a0

We promise to provide you the best service and the most affordable price at any time!
