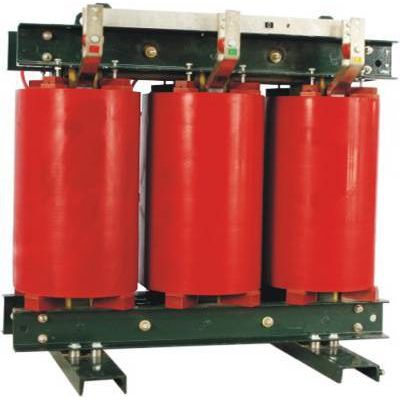

Dry-type Transformer

Technical Specifications

1. Voltage class: 6~35kV

2. Model of voltage regulation: off-circuit or on-load tap-changing

3. Tapping range: 5%, 2u00d72.5%

4. Power Capacity: 30~3150kVA

5. Frequency: 50Hz or 60 Hz

6. Phase No.: three phases

7. Vector Group: Yyn0 or Dyn11 or according to customersu2019requirements

8. Impedance voltage: 4~9% or according to customersu2019 requirements

11. Guard class: IP20, IP23

12. Thermo-tolerance class of insulation: F

13. Insulation level: A. For 10kV class: LI75AC35; B. For 35kV class: LI170AC70/LI (0) AC3 (kV)

9. Service condition:

(1)Altitude: not exceeding 1000m

(2)Working temperature: -40℃~40℃

(3)Relative air humidity：≤90%（+25℃）

(4)The equipment should be installed in a stable and less corrosion area.

(5)For special requests, please discuss with the manufacture.

It is safe, non-pollute, and flame proof which can be installed directly on the load centre with the merits of free maintenance, easy installation, low combined operation cost, low loss and excellent humidity resistance.

SCB10;SCB9
