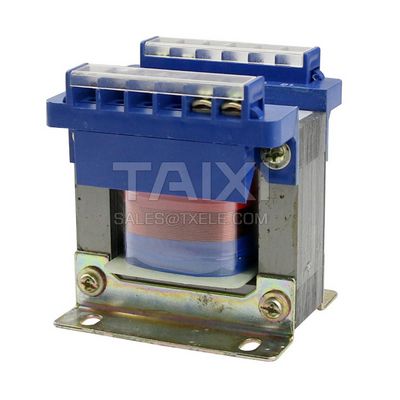

BK Industrial Control Transformer

Scope of Application
BK Industrial Control Transformer is suitable for the AC circuit of 50Hz/60Hz, which is used as the control power, local lighting and indicator light power supply for general electrical apparatus in machine tools and machinery.
The Industrial Control Transformer meets the standard: JB/T9646 standard.

Normal working conditions and installation conditions
The Industrial Control Transformer can work reliably under the following environmental conditions.
The altitude does not exceed 2000m.
The ambient air temperature upper limit is 40°C, and the lower limit is -5°C. (When the user needs to use it in the environment higher than 40°C or lower than -5°C, special instructions and special custom are required when ordering.)
When the max temperature is 40°C, the relative humidity of the air does not exceed 50%. At relatively low temperatures, higher relative humidity may be allowed, for example, 90% at 20°C. Special measures should be taken for the occasional condensation produced due to temperature changes.
In the ambient air, there is no no corrosive metal or harmful gas or dust that destroys insulation; In the use, Industrial Control Transformers must not be corroded by water, rain, or snow.
The power supply voltage is similar to the sine wave.

Specification
Industrial Control Transformer Rated capacity: 25VA, 50VA, 100VA, 150VA, 200VA, 250VA, 300VA, 400VA, 500VA, 700VA, 1000VA, 1500VA, 2000VA, 3000VA, 5000VA.
Industrial Control Transformer Primary voltage: 220V, 380V or according to user requirements;
Industrial Control Transformer Secondary voltage: 6.3V, 12V, 24V, 36V, 110V, 127V, 220V, 380V or according to user requirements.
