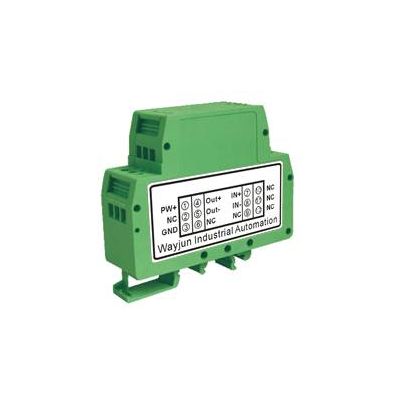

0-10v/0-3v to 4-20ma,DIN35 signal converters

Product Description

WAYJUN supply analog signal converters.
Part No.:DIN11 IAP-V2-P1-A4
DIN11 IAP-Vz-P1-A4
1. Input:4-20ma power supply:24VDC output:0-10V Part No.:DIN11 IAP A4-P1-V2
2. Input: 0-10V power supply:24VDC output: 0-10V Part No.:DIN11 IAP V2-P1-V2
3. Input:0-5V power supply:12VDC output:0-5V Part No.:DIN11 IAP V1-P2-V1
4. Input:0-3V power supply:24VDC output:4-20mA Part No.:DIN11 IAP Vz-P1-A4(Vz:0-3V)


Features:
>> Optical Isolation Amplifier Module
>> Accuracy grade: 0.1/0.2/0.5. Factory calibrated, the user can use directly
>> Auxiliary power supply: 5V/12V/15V/24VDC (± 10%)
>> International standard signal input: 0-5V / 0-10V/1-5V, 0-10mA / 0-20mA/4-20mA
>> Standard output signal: 0-5V / 0-10V/1-5V, 0-10mA / 0-20mA/4-20mA
>> High linearity (nonlinearity <0.2%)
>> DIN35 rail mounting
>> Size: 79.0x69.50.0x25.0mm
>> Strong anti-electromagnetic interference and high-frequency signal interference capability
Application:
>> Analog signal data isolation, collection and transformation
>> Isolated 4-20mA or 0-20mA signal transmission
>> Signal isolation and conversion of industrial site
>> Long-term signal transfer without distortion
>> Instrument signal transceiver
>> Power monitoring, medical equipment isolation
>> Ground interference suppression
>> PLC / FA motor control signal isolation
