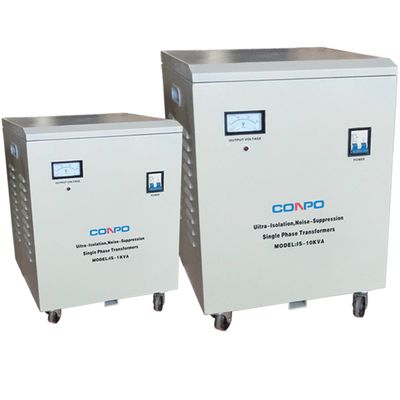

Insulation/Isolation Transformer 1phase1kVA/2kVA/3kVA.../8kVA/10kVA.../30kVA/40kVA/50kVA/60kVA/100kV

Feature

The Ultra-Isolation & Noise Suppression Transformer are indoor air self cooling ones, which is available in the circuit of AC 50Hz and voltage less than 1000V. Input/output voltage of all transformers can be made according to order. Number of phase has three-phase and single-phase or three-phase input with single-phase/two-phase output etc. The max. Rated power will be up to 1000KVA.



Main Technical Data

Phase no.: Single-phase

Input voltage: 200V/220V/230V/250V etc

Output voltage: 220V etc

Frequency: 50Hz-60Hz

Ambient temperature: -10 º C~+40º C

Relative humidity: 2MΩ



Application

It is available in the electric supplying of electronic instruments, machinery equipment, lighting, rectifying device etc.



Remarks:

Custom-made specifications are acceptable.

Model Rated Power Pkg Size(cm) Qty per pkg(Units)

IS-50VA 50VA 43*20*35 8

IS-100VA 100VA 43*20*35 8

IS-200VA 200VA 43*20*35 6

IS-300VA 300VA 45*40*20 4

IS-400VA 400VA 45*40*20 4

IS-500VA 500VA 45*40*20 4

IS-700VA 700VA 30*30*35 1

IS-1000VA 1000VA 43*48*57 1

IS-2000VA 2000VA 43*48*57 1

IS-3000VA 3000VA 49*48*60 1

IS-5000VA 5000VA 49*48*60 1

IS-8000VA 8000VA 50*52*62 1

IS-10KVA 10KVA 50*52*62 1

IS-15KVA 15KVA 50*52*62 1

IS-20KVA 20KVA 60*62*70 1

IS-30KVA 30KVA 60*62*70 1

IS-40KVA 40KVA 70*72*80 1

IS-50KVA 50KVA 70*72*80 1

IS-60KVA 60KVA 70*72*80 1

IS-70KVA 70KVA 70*72*80 1

IS-80KVA 80KVA 90*95*110 1

IS-90KVA 90KVA 90*95*110 1

IS-100KVA 100KVA 90*95*110 1
