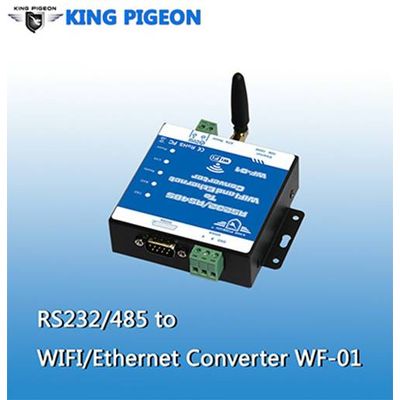

Serial to Wifi/Ethernet Converter (RS232/485+RJ45)

WF-01 is a wireless networking router, which is used for project of RS232/RS485 serial equipment to WIFI or Ethernet networking.

WF-01 provides a serial port to WIFI function, can be RS-232/485 converted into a TCP/IP serial network interface, RS-232/485 serial port and WIFI/ Ethernet bidirectional data transparent transmission.The serial device can transfer the data to TCP/IP network interface connect to the network for data communication, communication extended the range to serial device greatly!

1.Can use as a Router;

2.Support Hardware AP, HTTPD Client and WEB IO;

3.Suport TCPB Function;

4. Fast Access WiFi;

5.Support hardware flow control (RTS/CTS) RS232 interface, male mouth(needle) consistent with computer pin definition;

6.RS232 RS485 automatic switching;

7.Support Webpage Configuration;

8.RJ45 network connection, support wired Ethernet transmission;

9.Rich status indicator light: Power/Ready/Link/RXD/TXD;

10. Reload button, do not worry incorrect settings(in working status, press the button 3s then it load to default settings and automatic restart);

11. Design with positioning hole, convenient installation;

12.Highest support baud rate 460800 bps;

13.Optional TCP Server/TCP Client/UDP Client/ UDP Server mode, the TCP Server mode can support up to 32 Client connection;

14.Multiple applications for data transmission from wired to wireless.

Certification:FCC/CE

Wireless standard:802.11 b/g/n

Frequency range:2.412GHz-2.484GHz

Transmit power: 802.11b: +20dBm(Max.)

Receiver Sensitivity:802.11b: -89dBm

data transmission from wired to wireless

>>> WF-01 WIFI Converter * 1



>>> Antenna * 1



>>> LAN Cable for 1 Meter * 1



>>> User Manual *1



>>> Packing size: 17*9.5*4 cm



>>> Gross Weight: 0.32kg
