low frequency transformer core silicon steel lamination

Product Description

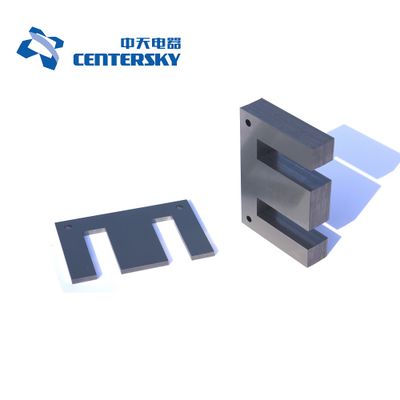

Silicon Steel Laminated Iron Core For Transformers
Product Description


EI Lamination is made by the silicon steel strip.The model of EI lamination in standard sizes is from EI 28 to EI -240, and the model of EI lamination in non-standard sizes is from EI-36 to EI-360. the gap sizes of transformer lamination core can be customized.

Three -phase EI lamination is made by the silicon steel strip. the model of three-phase EI lamination is from three-phase (20) to three phase (100), The gap sizes of transformer lamination core can be customized.

UI lamination is made by the silicon steel strip.the model of UI lamination is from UI-30 to UI-100. the gap sizes of transformer lamination core can be customized.

Product Feature

Material: crngo and crgo
Coating: C5 with non-oriented and T4 with grain oriented

Product Specification / Models

EI-48 TO EI-360 with single phase;
3PEI-17.5 TO 3PEI-100 with three phase;
UI-20 TO UI-100 with UI type
I lamination 30mm*30mm for example

Application / Models

Transformer, Electrical Equipment, Generator, Stabilizers,UPS and so on

Other Information

Package: 25 KG/CARTON, THEN TO PALLET
Delivery: 14 DAYS AFTER ADVANCE PAYMENT
