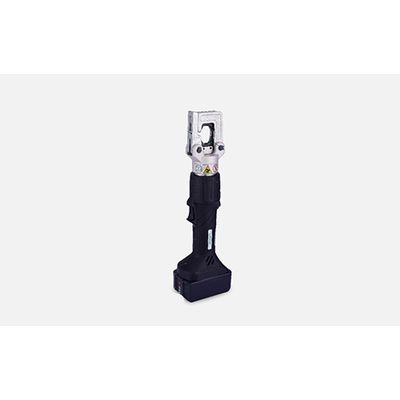

Rechargeable Hydraulic Crimping Tool

Product specifications and features

After installing the appropriate mold, it can be used in transmission and distribution construction projects to quickly crimp different sizes of copper and aluminum terminals and connecting pipes.

The compact, compact body is easy to carry with one hand.

It is easy to open the clamshell jaws, place the terminals and replace the mold.

Rotatable jaw design for flexible operation in tight environments.

Interchangeable molds ensure accurate crimping of terminals and splices of different materials and sizes.

The fast hydraulic system is designed to push the piston and automatically create ample workmanship while ensuring crimping speed and force.

When the crimping is completed, the safety valve is activated and the pressure is automatically released to ensure a safe and accurate crimping effect.

When the operation is wrong or needs to be temporarily adjusted, it is allowed to press the reset button to manually release the oil.

With pressure-holding function: When the switch is released, the piston does not retract, saving operating time.

After the switch is released, the motor is quickly stopped, saving power and improving safety.

Powerful motors provide enough work to ensure crimping.

Equipped with a high-performance lithium battery to ensure long working hours.

White LED illuminator that illuminates the work area and assists in dark environments.

The red ED light indicates the working status and power, and the battery is replaced and charged in time.

Plastic box packaging for placing tools and all related accessories.

Product parameters

Output: 6.7T

Stroke: 14mm

Crimp range: 16-240mm2

Weight: 3.1kgs

Size: 117*77*403mm

Standard crimping die (hex die)

16 25 35 50 70 95 120 150 185 240mm2

Note: Other sizes of hexagonal stampers or special-shaped molds can be customized.

Standard accessories

1 plastic box

2 batteries (18V4.0Ah)

1 charger (charging time: 2 hours)
