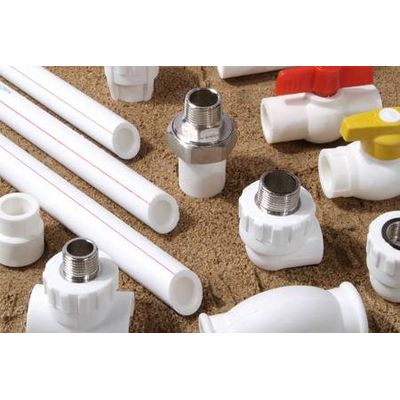

PPR pipe, ppr hot&cold water supply pipe, ppr tube,plastic tube

Specifications

Polypropylene pipes

Brand: Miergu

Material: PPR

Size: 20-160 mm

50 year service life

PPR pipe white pipe for hot and cold water

Specifications

Polypropylene pipes

Brand: Miergu

Material: PPR

Size: 20-160 mm

50 year service life

Polypropylene pipes

u00a0

Features:

Material:Good PP

Pressure Rating: 2.5MPa/2.0MPa/1.60MPa/1.25MPa

Standard: ISO 9001

Production temperature: -40 - +95C

Certification: ISO9001.

Color:Green,White,Grey etc.

Size: 20-160 mm

u00a0





Advantages:

High temperature resistance: the maximum sustained working temperature is up to 70 degrees, the maximum transient temperature is up to 95 degrees

Heat preservation: low thermal conductivity result in preserving heat

Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium

Lower installation costs: light weight and ease of installation can reduce installation costs

Higher flow capacity: smooth interior walls result in low pressure loss and high volume

Secure connection: well fusion performance; and adopted advanced fusion connecting technology to integrate whole pipe system, which reduce the possibility of leakage

Size:

S5 cold water pipe (PN1.25)

20*2.0

25*2.3

32*2.9

40*3.7

50*4.6

63*5.8

S4 cold water pipe (PN1.60)

20*2.3

25*2.8

32*3.6

40*4.5

50*5.6

63*7.1

S3.2 hot water pipe (PN2.0)

20*2.8

25*3.5

32*4.4

40*5.5

50*6.9

63*8.6

S2.5 hot water pipe (PN2.5)

20*3.4

25*4.2

Applications:

(ppr white)

Building cold or hot water supply system

Director drinking water/purified water supply system

Hotel cold/hot water supply system

High temperature radiator systemu00a0

Color: White, Gray, Green,or customerized
