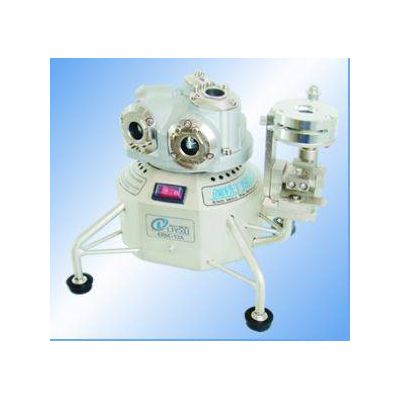

End mill grinder ERM12

Endmill grinder ESM-12



Features:

Help achieving sharpening of 2 flutes,3 flutes and 4 flutes 2-12MM mill,

without changing grinding wheel.

Turn old mill to be a new one within just one minute

The sharpening effciency improves 5 to 10 times

It is easy to operate,you only need to fix the holding assembly of the mill and rotate and move it slightly after put it in sharpening mouth;the sharpening for mill can be finished in 1 minutes which solves the problems of traditional sharpening machine such as complicate operation procedures and long sharpening time.

Cut down cost for you

You do not need to worry about high tool consumption ant more and one old mill can be sharpened for decades of times and only 0.1 to 0.4 Yuan for each time can turn the old mill to be as good as a new one, which cuts down application cost greatly.



Quality assurance

The sharpening precision is high;after sharpening,the difference for tool angle is less than 0.01mm,which can be applied a new one;if one need milling process,the flutes of mill can cut simultaneously to ensure the application the of mill,which solces the problems that the precision is poor and the height product process and then affect the processing precision.

Specification:





Model



Esm-12





Applicable diameters



2-12





Applicable flutes



2 flutes,3 flutes,4 flutes





Axial angles



Secondary clearance angle 6u00b0 ,Primary relife angle 20u00b0,End gash angle 30u00b0





Grinding wheel



SDC#220 (CBN Choose)





Power supplysupply



220v u00c2u00b1 10%AC





Motor output



300W





Rated speed



7000rpm





Outer dimensions



290 x 260 x 230(mm)





Weight



7.5KG





Normal accessories



Collet,2 flutes holder,3 flutes holder,4 flutes holder,

case,Hexagon wrench,Brush,Power cord
