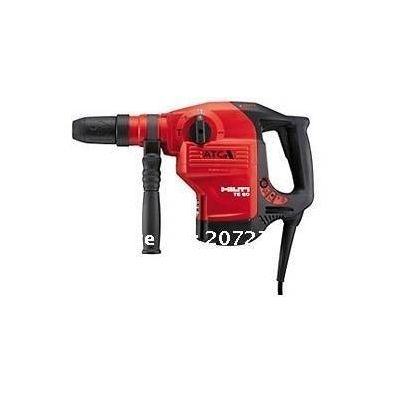

HILTI TE 60-ATC-AVR Hammer drill

Rated input 1200 W

Single impact energy 7 J

Full hammering frequency 2785 impacts/minute

Chuck type TE-T

Weight according EPTA-Procedure 01/2003 6.3 kg

Dimensions (LxWxH) 483 x 98 x 245 mm

Triaxial vibration value for hammer drilling into concrete ( 18.5 m/su00b2

Triaxial vibration for chiseling in concrete 14 m/su00b2

Uncertainty (K) for triaxial vibration value for chiseling ( 1.5 m/su00b2

Number of gears 1

Rotation speed gear 1 under no load 485 rpm

Optimum drilling diameter in concrete 12 mm - 40 mm

Drilling Performance 89.5 cmu00b3/min @ u00d8 20 mm

100.6 cmu00b3/min @ u00d8 25 mm

106.9 cmu00b3/min @ u00d8 32 mm

Control switch lock Yes

Variable speed switch Yes

Service indicator Yes

AVR - Active Vibration Reduction No

Active Torque Control No

- Powerful 1200W motor but extremely compact dimensions



- Ruggedly built for long life



- Center of gravity close to the grip for good balance and handling



- Hilti TPS electronic theft protection system

- Drilling holes 18 to 30 mm dia. in concrete, masonry and natural stone for heavy-duty anchors



- Pipe penetrations up to 66 mm dia.



- Breaching and medium-heavy demolition using pointed and flat chisels



- Working with wide-flat, hollow, mortar and channel chisel or bushing tool
