Circular Saw Blade Polishing Machine

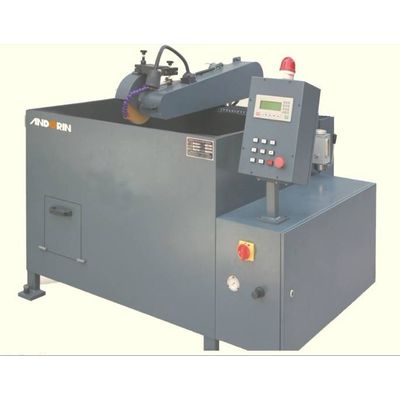

Automatic Circular Saw Blade Polishing Machine

Model number : PM069

Easy operation, water cooling system, wet polishing, no deform, clear lines and high accuracy, automatic braking stop system which have greatly improved the efficiency, suitable for mass production of saw blade.

Model number : PM069

Easy operation, water cooling system, wet polishing, no deform, clear lines and high accuracy, automatic braking stop system which have greatly improved the efficiency, suitable for mass production of saw blade.

Technical parameters:

Diameter of saw blade: 80 ~ 800mm

Power supply voltage: 3N380V 50HZ

Total power: 2.35KW

Operating pressure: 0.6mpa

Arbor of saw blade : 12 ~ 85mm

Arbor of wheel: 32mm

Diameter of wheel: 250mm

Rotation speed of Wheel: About 1400r/min

Rotation speed of turntable :Between 150-200 r/min, automatic adjustment

Coolant tank capacity: 80L

Cooling pump flow rate: 24L/min

Dimensions: 1408 u00d7 1577 u00d7 1556mm

Gross Weight: 160 kg

Automatic Circular Saw Blade Polishing Machine

Model number : PM069

Easy operation, water cooling system, wet polishing, no deform, clear lines and high accuracy, automatic braking stop system which have greatly improved the efficiency, suitable for mass production of saw blade.

3. Terms of installation, testing and training (If needed).

3.1 Buyer should pay for the double-way air tickets before two engineers depart for installation. The charge depends on How much is the air ticket.

3.2 Buyer should be responsible for the two engineers' accommodation, food and local transportation during installation and testing of the machines.

3.3 Seller should be responsible for the buyer's accommodation, food and local transportation from air port to factory, if buyer dispatch one engineer come here as training.

4. Warranty Period:

Guarantee : 1 year against production faults.

4.1 The Warranty covers any defects in materials and workmanship and is granted by the Manufacturer for a period of twelve months from the date of signing Test Acceptance. Manufacturer will provide on-site service if required so during the warranty period the two engineers double-way-tickets, local accommodation and transportation fee are borne by the Buyer.

4.2 This machine has a one year guarantee for all repairs, but following condition excepted: improperly performed repairs, self-made modifications to the machine, catastrophe caused by an outside force or an act of God. If the buyer not in China, The buyer should be responsible for the two engineer's double-way-tickets, local accommodation and transportation fee, even during the warranty period.

Delivery:FOB-Shenzhen, China

6 weeks from the receipt of the order confirmation.

Payment:30% of the total amount to be paid as advance as an order confirmation 70% balance to be paid when the machine is ready for transport - before shipment.
