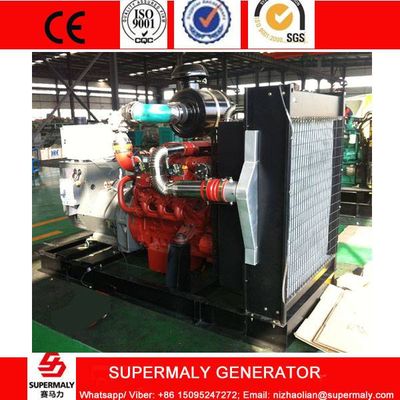

250KW 300KVA Natural Gas Generator set with Deutz engine

250KW Natual Gas Generator powered by famous Deutz engine / Cummins engine or China engine. Cummins and Deutz quality very reliable, while China engine price is cheap.It is widely used as main power or standby power.



MODELSP250GF-T

Standby Power275KW/344KVA

Prime Power250KW/312.5KVA



GENERAL SPECIFICATION

Brand New Deutz Powered Natural Gas Generator Set

Manufacturer under license of Deutz Engine Co., Ltd

Dual phase system: single or three phase

Dual Voltage output: 200V-240V, 400-440V AC

Rated frequency: 50/60HZ

Power factor: 0.8



ENGINE SPECIFICATIONS

Engine model: BF8M1015GCP

Industrial 4-Cycle, Water-Cooled (Radiator-Cooled)

8 cylinder, V type, spark plug ignition

Engine Speed: 1800 rpm /1500rpm

Displacement: 15.874L

Bore* Stroke: 132*145mm

Governor: (Automatic) Electrical

Turbo-charged, After-cooled (on some models)



A.C. ALTERNATOR SPECIFICATIONS

New Brushless Alternator Stamford, Leroy Somer, Marathon...

Built-In Automatic Voltage Regulator (A.V.R.)

Rotating Field, Self-Ventilated, Double-Shielded Single Bearing

Class "H" Insulation

Rotor Balance (in accordance with BS5625 Standard 12.5)



PANEL CONTROL

Key Manual Start Module Engine Control & Monitoring Panel

Low Oil Pressure , High Water Temp Protection Features

Tamper-Proof Engine Hour Counter

Auto/Manual Start

Simultaneous Multiple Engine Parameters Monitoring

Remote Start/Stop thru SMS, with GSM SIM Card (on some models)



SUPPLY SCOPE

Engine(BF8M1015GCP)

Radiator 40C max, fans are driven by belt

24V charge alternator

Alternator (STAMFORD HCI444D), single bearing alternator IP23, insulation class H/H

Base frame with absorbers

Air filter, oil filter

Main line circuit breaker

Standard control panel

Two 12V batteries ,rack and cable

Electromagnetic valve, ball valve

Gas pressure adjusting valve

flame arrestor

Ripple flex exhaust pipe ,exhaust siphone, flange, muffler.

User manual

The 250KW natural gas generator is CE, ISO certificated.



SALES PROMISE

Supermaly provides a full line of brand new and high quality products .Each and every unit is strictly factory tested.

Warranty is according to our standard conditions: 12 months or 1500 running hour's, subject to the earlier one.

Service and parts are available from our factory or distribution in your location.

Gas pressure 2-7KPA

Gas consumption 0.32Nm3/kw.h

Cooling method Closed type water cooling(with water tank)

Speed modulate methodElectronic control

Net weight kg3350

Overall dimension Lu00d7Bu00d7H(mm)3160*1450*1950

factory, market, subway, highway, telecommunication, harbor, building, farm, oil filed, CNG station, etc.
