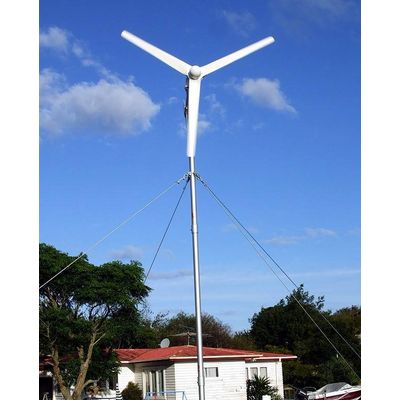

H2.7-500W Home Wind Turbine

1. patent technology

2. low startup wind speed.

3.high efficiency+small size

4.professional factory



1. generator located inside nose cone to radiate heat easily, with generator itself extremely light and small, low in noise.



2. yaw shaft with the slip ring to ensure the rotation at 360 circulation.









3. tail ple and tial wing connecting with the body of wind turbine through SKF ball bearing, more endurable and strong.









4. tower made of galvanised steel anti acid proof and salt proof.









5. 3 in 1 inverter integrating the functions of battery charging, inverting, controlling. diversion lights included, a pare terminal of solar panel on the back.

Alternative Energy Generators

rated power 500w

max power 1000w

battery bank voltage 24v

blade quantity and material 3 pieces of reinforced fiber glass

start up wind speed 3m/s

rated wind speed 7m/s

rated rotating speed 600rpm

wind energy utilizing ratio 0.48

generaor output single phase frequency conversion AC

output AC frequency 0--300

rated charging current 15A

max charging current in a short time 25A

generator efficiency above 0.78

tower specification diameter 76mm plus 3 segments each 2 meters

observation site, military post and TV transmission station, office, farm, etc .

H2.7-500W wind turbine with small and light structure features, strong power making ability. Hummer adopt several patented technologies and refined materials.



The generator of H2.7-500W is one of the most advanced one in the world, it was made of refined magnetic material, special copper alloy, aviation aluminum alloy and stainless steel, it is highly efficient in power. By an amazing 6.5kg weight, H2.7-500W wind turbine can generate more power than you can image . Its wind energy utilization ratio is as high as 0.48 while generator efficiency is more than 0.78. Thus, the rated output power of H2.7-500W wind turbine is 500W, and the max output is 1000W.



H2.7-500W wind turbine is designed for off grid style which use battery bank to store energy. H2.7-500W wind turbine is suitable for remote areas remote areas where state grid is not available, such as remote village, mountainous areas, remote observation site, military post and TV transmission station, office, farm, etc .
