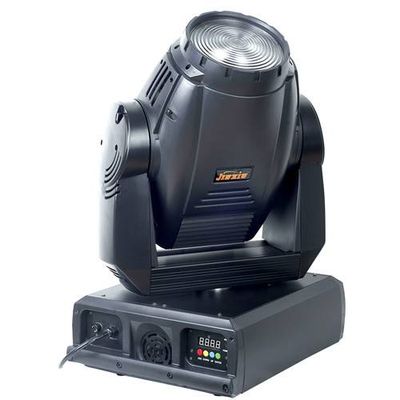

1200w Moving Head Wash Light

1200W Moving head Wash light



JX-2020

SPECIFICATIONS

Power: AC110V-240V 50-60Hz

Lamp: HMI 1200W

Power: 1500W

Control Signal: DMX 512

Channels: 16CH/22CH

Body Size: L445xW400xH715mm

N. W: 48 KG

G. W: 55KG



22 DMX Channels

1 Shutter/Reset

2 Color Wheel1

3 Color Wheel2

4 Dimmer

5 Strobe

6 Pan

7 Tilt

8 Pan Fine

9 Tilt Fine

10 X/Y Speed

11 Cyan

12 Magenta

13 Yellow

14 Gobo Shake

15 Gobo Adjusting

16 Zoom

17 Vector Mode

18 Prism

19 Prism Rotation

20 Focus

21 Effects

22 C/M/Y Speed



FEATURES AND BENEFITS

6 color + open; Color temperature filter

3 primary color effect(C, M, Y)

3 primary speed adjustment

0-100% Mechanical linear Dimmer

1-10 times / s high speed STROBE effect

LCD, Operating shortcut, convenience

Horizontal 450u00b0 and vertical 270u00b0 scanning range,

smooth scanning action and accurate orientation*

1-motor motivated on both pan and tilt movement

Several convection fans refrigeration

optimize circuit design inside*heat elimination rapidly.

Built-in over heat protection and high voltage protection

Compatible with DMX 512 international digital signal

PFC Power factor compensate

According to various kinds of safety standards,

IP20 protect grades. The cable accords to the

CE20/22 standard

for stage and show

JX-2020
