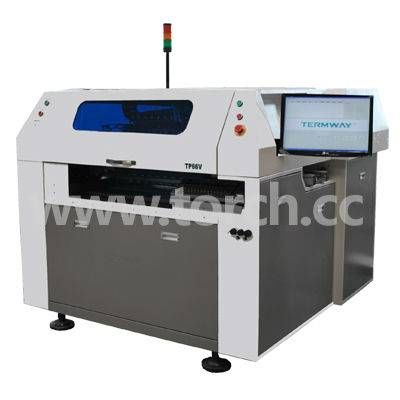

High Speed LED Visual Pick and Place Machine TP66V (TORCH)

TP series is a fully automatic vision SMT pick and place machine, it can mount a variety of components through the vacuum nozzle can be mounted .it is the most cost effective automatic placement equipment on recently market.This machine is suit for most of the SMD components, such as 0402,SOIC,PLCC and QFP IC; With the vision position system, meet the needs of mounting high precision 0.5mm of QFP IC or BGA . Beside the standard circle reference point, the square ,which is not the PCB solder paste screen printing pad ring perforated pad, can also be as a reference point to know.

TP series is a fully automatic vision SMT pick and place machine, it can mount a variety of components through the vacuum nozzle can be mounted .it is the most cost effective automatic placement equipment on recently market.This machine is suit for most of the SMD components, such as 0402,SOIC,PLCC and QFP IC; With the vision position system, meet the needs of mounting high precision 0.5mm of QFP IC or BGA . Beside the standard circle reference point, the square ,which is not the PCB solder paste screen printing pad ring perforated pad, can also be as a reference point to know.

Mounter head

2 unit-12 heads



Max PCB board

1500u00d7316mm



Mini PCB width

40mm



Thickness range

0.3-4.2mm



Max move range

350u00d7580mm



Z axis move range

40mm



Component max thickness

15mm



Typical speed

14000-17000cph



Max speed

32000cph



X,Y axis



precision

0.002mm



Mount precision

u00b10.03mm



Position manner

Visional position



Component available

Above 0402 and less than 38 mm pitch ,more than 0.5mm IC



Programme method

Automatic data import / video learning / keyboard input



Transmission

XY-axis high precision ball screw with precision guide





Tape feeder

Optional 8mm,12mm,16mm,24mm,32mm,44mmfeeder





Feeder No.

Can be put 96 pcs of 8MM GFTA-08S feeder,the front

and back can be put 48pcs



IC feeder NO.

No more than 2 pcs



Operation system

WINDOWS XP



Compressed air

80psi(0.5Mpa-0.7Mpa),flue no more than100L/min



Power

220V,50Hz,5Kw



Weight

1520Kg



Dimension

1650 u00d7 1485 u00d7 1400mm
