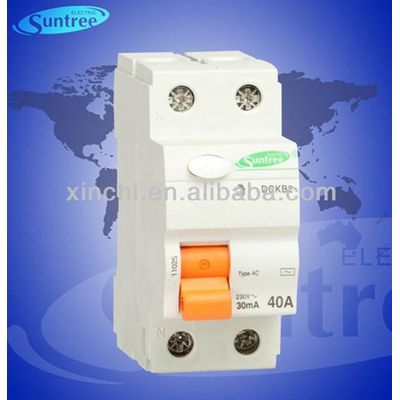

ID RCCB 2P 4P Max current 63A has passed IEC, CE

ID RCCB 2P 4P Max current 63A has passed IEC, CE certificate











APPLICATION of RCCB









SIDN Residual current circuit breaker without over current protection conforms to the standards of IEC61009.1,BS4293 etc, It is used in the circuit of AC 50/60Hz. single phase 230V, three phases 415V in industrial & mining enterprises, Commercial buildings and housing for protection of personal electric shock hazard, and also can used for unfrequented switch over circuit under normal conditions.







Specifications of RCCB







Standard IEC61009.1

Rated Voltage(Un) 2Pole 230VAC 4Pole 415VAC

Rated Current(In) 25,40,63A

Rated Residual Operating Current 30,100,300,500mA

Rated Current off-time 0.1s

Mini Value of Rated Operating and Breaking Capacity(Im) 1kA

Rated Conditional Short-circuit Current(Inc) In=25,40A Inc=1500A In=63A Inc=3000A

Endurance On load:2000cycles off load:2000cycles

Installation On symmetrical DIN rail
