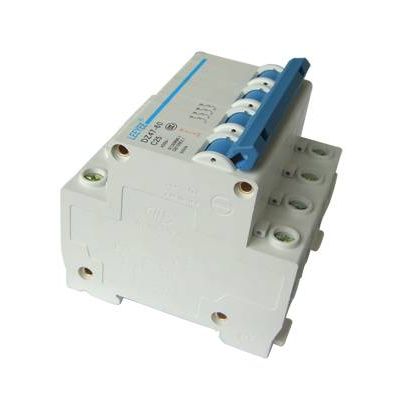

C45 6KA MCB Mini circuit breaker

C45 Circuit breaker is used in lighting distribution system or motor distribution system for protecting overload and short circuit in the system. Our circuit breaker is neoteric in structure, light in weight, reliable and excellent in performance. The circuit breaker's frame and parts adopt plastics of high fire resistant and shockproof. The product, with long life, is mainly used in AC 50Hz/60Hz single pole 240V or two, three, four poles up to 415V circuit for overload and short circuit protection, as well as for unfrequently switching on&off electric equipment and lighting circuit in normal case. The products comply with IEC 60898 & GB10963-1999.

Curve B: (3~5 In) protect and control circuit against overload and short circuit; protect people and length cables in TN and IT systems.



Curve C:(5~10 In) protect and control circuit against overload and short circuit; protect resistive and inductive loads with low inrush current.



CurveD: (10~20 In) protect and control circuit against overload and short circuit; protect circuits which supply loads with high inrush current when the circuit closing.





Type of terminal: Lug type and pin type

16mmu00b2 flexible or 25mmu00b2 rigid up to 25A ratings

25mmu00b2 flexible or 35mmu00b2 rigid for 32A to 63A ratings

Electrical features

Rated current In A 1, 2, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63

Poles 1, 2, 3, 4P

Rated voltage Ue V 230/400

Insulation voltage Ui V 500

Rated frequency Hz 50/60

Rated breaking capacity A 4500, 6000

Rated impulse withstand voltage (1.2/50) Uimp V 6000

Rated sensitivity In A 0.03, 0.1, 0.3

Dielectric test voltage at ind. Freq. for 1 min Kv 2

Pollution degree 2

Mechanical features Electrical life t 8000

Mechanical life t 10000

Protection degree IP20

Storage temperature u00baC -25~+70

Ambient temperature (with daily average 35u00baC) u00baC -5~+40

Installation Terminal connection type Cable / Pin-type busbar

Terminal size top/bottom for cable mm2 25

AWG

Terminal size top/bottom for busbar mm2 25

AWG

Tightening torque N*m 2.5

In-Ibs. 22

Mounting On DIN rail EN 60715(35mm) by means of fast clip device

Connection from top and bottom

C45 MCB is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system.It has high breaking capacity,can trip quickly,and its case and items are adopted by high fire-resistant and shockproof plastics.The product,with long life,is mainly used in AC 50Hz/60Hz single-pole 230V or two,three,four pole 400V circuit for overload and short-circuit protection as well ad for unfrequent on and off switching electric equipment and lighting circuit in normal case.

a. Can be used in homes, offices, buildings and industries





b. Overload protection



c. Short circuit protection



d. Isolation,control
