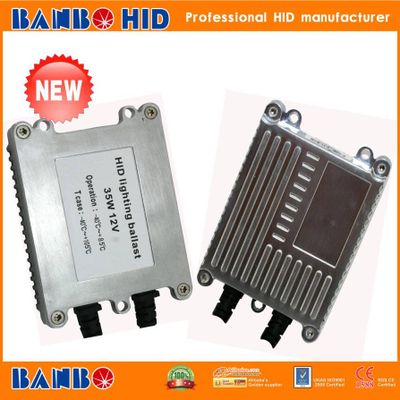

HID ballast Mars-B

Min. Order: 1
Payment: T/T, Western Union, Money Gram ONLY
Minimum Order: no MOQ for regular order,500units for OEM order
Delivery: Within 7 working days after payment is received.
Origin: Fosha,China
Packing: plain box or OEM box
Inspection: -
Samples: Charge
Sample Price: $16.00
Contact Supplier

Favorite

Inquiry Basket

Product Attributes
Company Profile
Logistics and other information
    Product Details
    Product Description
    1)Super wide range of acceptable input voltage (9~16V)

    2)Low startup electric current (3A), easy to startup without initiating the alert indicator light on dashboard.

    3)Obtain stable brightness quickly within 5 seconds upon cold boot, more safe for driving.

    4)With excellent digital microchip made in USA, means more stable performance and low defective rate



    Product Feature
    Parameters:





    1) Input voltage rage: AC 9~16V

    2) Rated voltage: 13.5V

    3) Max. start voltage: 23kV.

    4) Input current: 3.1A+/- 5%

    5) Output power: 35W+/-2W

    6) Luminosity: 3,600 lumens

    7) Working temperature: -40 ~ 105u00b0C

    8) Color temperature: 4,300K - 12,000K or above

    9) Life-span: 3,000 hours

    10) Startup time: can reach 20% of the standard brightness within 1 second; can reach 80% of the standard brightness within 4 seconds

    11) Auto cut-off: once there is a short circuit or open circuit, the ballast will

    stop working automatically ;

    12) Protection voltage: when the voltage exceed 35V, the ballast will stop working

    automatically, and make the output power below 45W, to protect the ballast and

    bulb from damage. When the voltage is 8V, the ballast still can work normally,

    but when the voltage is below 7V, the ballast will stop working to protect the ballast

    from damage ;

    13) Reverse polarity protection: the ballast will stop working automatically when

    a reverse polarity happens

    14) Radiation:

    Relative value: less than -70dB .

    Absolute value: less than 20mW for standard wireless interference

    Relative value: less than -90dB ;

    Absolute value: less than 5mW for our product.

    Product Specification / Models
    Model: Mars-B
