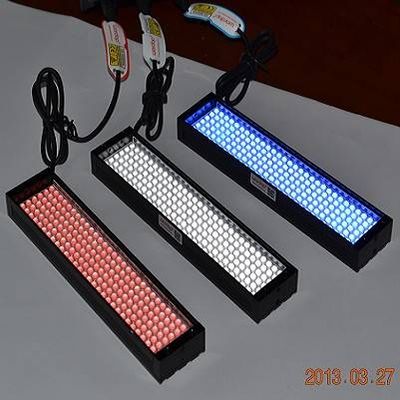

Machine Vision Bar Light, Bar Light for Machine Vision Light. Bar Light, Machine Viosion Lights

1. High density LED array, superior evenness, high brightness.

2. The specified lens for the bar lights, effectively changed the LED light angle. Narrow which focus the light into a beam. And wide, which spreads the light out over a broad area.

3. The diffusion plate is optional, it can diffuse the light equality.

4. Good radiating design make sure the lights quality stable and long life.

5. Using the Standard mold to manufacture lights shell, easy installed, freely adjustable light angle.

Features:



1. High density LED array, superior evenness, high brightness.

2. The specified lens for the bar lights, effectively changed the LED light angle. Narrow which focus the light into a beam. And wide, which spreads the light out over a broad area.

3. The diffusion plate is optional, it can diffuse the light equality.

4. Good radiating design make sure the lights quality stable and long life.

5. Using the Standard mold to manufacture lights shell, easy installed, freely adjustable light angle.

Model Explanation 1. Bar light series



HDL-146 X 30 R 2. Emitting length (mm)



1 2 3 4 3. Emitting width(mm) (mm)

4. Lighting color

(R:red,B:blue,W:white,G:green)



HDL-41X16R-WD WD means the light angle is wide.



Series model power consumption

HDL HDL-41X16R 24V/1.9W

HDL-41X16W

HDL-41X16B

HDL-41X16G

HDL-41X16R-WD 24V/1.9W

HDL-41X16W-WD

HDL-41X16B-WD

HDL-41X16G-WD

HDL-80X16R 24V/3.8W

HDL-80X16W

HDL-80X16B

HDL-80X16G

HDL-80X16R-WD 24V/3.8W

HDL-80X16W-WD

HDL-80X16B-WD

HDL-80X16G-WD

HDL-119X16R 24V/5.7W

HDL-119X16W

HDL-119X16B

HDL-119X16G

HDL-119X16R-WD 24V/5.7W

HDL-119X16W-WD

HDL-119X16B-WD

HDL-119X16G-WD

HDL-74X30R 24V/5.7W

HDL-74X30W

HDL-74X30B

HDL-74X30G

HDL HDL-74X30R-WD 24V/5.7W

HDL-74X30W-WD

HDL-74X30B-WD

HDL-74X30G-WD

HDL-146X30R 24V/12W

HDL-146X30W

HDL-146X30B

HDL-146X30G

HDL-146X30R-WD 24V/12W

HDL-146X30W-WD

HDL-146X30B-WD

HDL-146X30G-WD

HDL-218X30R 24V/18W

HDL-218X30W

HDL-218X30B

HDL-218X30G

HDL-218X30R-WD 24V/18W

HDL-218X30W-WD

HDL-218X30B-WD

HDL-218X30G-WD

HDL-266X30R 24V/21W

HDL-266X30W

HDL-266X30B

HDL-266X30G

HDL-266X30R-WD 24V/21W

HDL-266X30W-WD

HDL-266X30B-WD

HDL-266X30G-WD

HDL-290X30R 24V/23W

HDL-290X30W

HDL-290X30B

HDL-290X30G

HDL-290X30R-WD 24V/23W

HDL-290X30W-WD

HDL-290X30B-WD

HDL-290X30G-WD

Bar Lighting

1, detection resin product testing connector

2, detection of damaged film and paper packaging

3, LCD damage detection, location tag detection

4, expansion of film, extended film, shelter belt breakage detection

5, structural damage detection film again and again

6, LCD parts inspection
