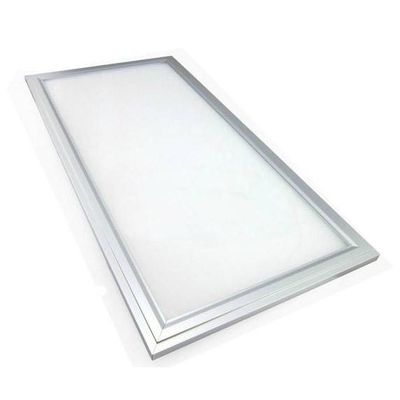

600*1200*12.5mm 70w led ceiling panel light

1.Led panel light

2.Lumenmax smd3014

3.Die-casting aluminum and PMMA

4.3 years warranty

5.CE RoHS TUV approval





Specification



Model : SW-P612-70W

Input Voltage: AC85-265V

Power: 70w

Led Qty: 660pcs

Brightness: 6300-7000lm

Led chip: Lumenmax

Beam Angle: 120u00b0

Power Factor: >0.9

CRI: >78

Color Temperature: 2700-7000k

Material: Die-casting Aluminum and PMMA

Warranty: 3 years

Color: sliver frame



Certificates: CE & RoHS &TUV

1. energy-saving, low consumption for us.



2. evironmental for us, no UV.



3. adopt imported good quality LED chips with our self-developed driver.



4. lighting method: side light methond makes soft light which is harmless for our eyes.



5. the guide plate we use is also imported good quality which is made of PMMA material.



6. several installation methods for us.



7. Colour temperature dimmable style available.



8. RGB dimmable style or color temperature dimmable style are all available.

Model : SW-P612-70W

Input Voltage: AC85-265V

Power: 70w

Led Qty: 660pcs

Brightness: 6300-7000lm

Led chip: Lumenmax

Beam Angle: 120u00b0

Power Factor: >0.9

CRI: >78

Color Temperature: 2700-7000k

Material: Die-casting Aluminum and PMMA

Warranty: 3 years

Color: sliver frame



Certificates: CE & RoHS &TUV

1. Shopping malls, store, supermarket;



2. Commercial lighting, hotel, restaurant, bank;



3. Office, meeting room, multifunction hall, exhibition hall;



4. House, living room lighting, kitchen lighting etc.

Installation

1.Please read the instruction before use the products,don't lose it in case you need it in the future.



2.Please follow the local laws and regulations.



3.In order to reduce the risk of electric shock,fire disaster,don't install the lamp in the rain and over current.



4.Only related professional certificated holder allowed to do the installation or maintenance to to avoid electric shock.



5.Wear the electrical protection equipments to protect you from injured.



6.Don't loosen the inside screws to ensure normal working or IP grade except using the wrench adjust the screw.



7.Shut the power immediately is the cable is on fire or smoking when power up, and notify the professional person to check out.



Trade terms

1. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivering (Western Union or Monogram Paypal are also welcomed).



2. Shipping freight are quoted under your requests.



3. Discounts are offered based on order quantities.
