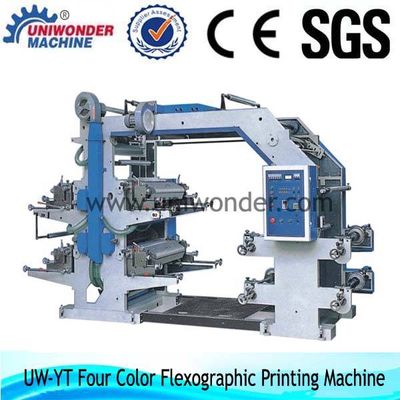

YT Series Four Color Flexographic Printing Machine

Use:

This machine is suitable for printing such packing materials as polyethylene, polypropylene plastic bag, glass paper and roll paper, etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Characteristics:

1. Easy operation, flexible starting, and accurate color register.

2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the set quantity or when the material is cut off.

3. Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.

4. The printing ink is spread by the knurled cylinder with even ink color.

5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.

6. 3600 continuous and adjustable longitudinal register devices.

7. The imported frequency control of motor speed adapts to different printing speeds.

8. There are inching/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

Main Technical Parameter:

Model YT4600YT4800YT41000

Max. width of Printing Material600mm800mm1000mm

Max. printing Width580mm780mm980mm

Printing Length190-960mm

Printing Speed5-50m/min

Plate Thickness2.38mm

Total Power12.2kw16.2kw19.25kw

Machine Weight3000kg3500kg4000kg

Overall Dimensions(Lu00d7W u00d7H) 4200mmu00d71600mm

u00d72400mm4200mmu00d71800mm

u00d72400mm4200mmu00d72000mm

u00d72400mm
