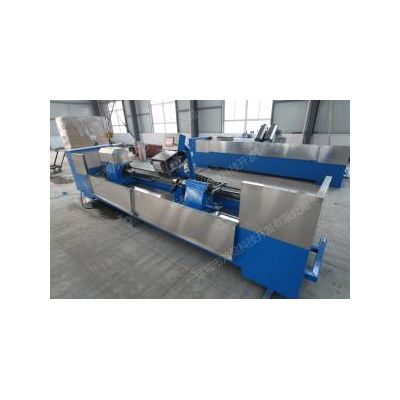

Chromium Polishing Machine for rotogravure cylinder making

Product:

HJ-PGJ Chrome polishing machine is the new full automatic numerical control model that developed by the rich experiences of designers. Their features are rigorous structure, stable, high efficiency, easy operation, etc.



Feature:

1.Easy operation

Centralized operation panel, pressure display, roller rotating speed display, polishing head reciprocal times display. Operator can set up and regulate parameter.

2 .Effectual polishing

To meet the challenge of different technical vibration,polishing head adopts constant torque electron electrodeless variable-speed, pneumatic control, cylinder push, panel governor valve regulate. High accuracy spindle and bearing ensure stationary spindle rotation, high rotary precision, frequency conversion electrodeless variable-speed.

3. Save shaft material

Tape feed motor adopts constant torque electrodeless variable-speed motor and reduction ratio motor, ensure polishing belt speed can inherent regulation between 2mm/min to 30mm/min.

4. High automatic complete appliance

Complete appliance adopts Mitsubishi PLC control, to achieve complete appliance automatic control. Transducer adopts Fuji transducer, increase the service life of complete appliance.

Technical parameters:

Polishing roll length420-1300mm( length specifications can book )

Polishing roller diameter100-400mm( special specifications can be booking)

Roll speed100-400 Revolutions per minute

The moving speed of polishing head600-2800mm/ Minute

Machine power5kw

Outline dimensions3.5*1.5*1.1m

WeightTons of2

User owned380/440vThe three-phase AC power supply, a source of compressed air



PLZ Kindly advise:

1.The size (length*Diameter*Circumference ) of the cylinder.

2.Related consumables and spare parts needed.( abrasive belt)



Look forward to your inquiry!!!
