IR drying machine, IR dryer, electric dryer

Product Description

Far infrared tunnel dryer use far IR light dry inks printed on paper and clothing.
Drying oven with IR conveyer can improve efficiency with mass production garment printing.

Product Specification / Models

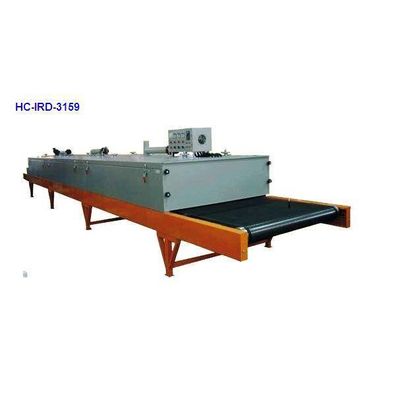

HC-IRD-3159 Far infrared conveyer tunnel dryer
1) Conveyer width: 31.5 inch (800mm)
2) Heat length: 59.0 inch (1500mm)
3) Body length: 94.5inch (2400mm)
4) Max height of product: 4inch (100mm)
5) Total power: 7.2KW
6) Fan power: 45W/220V*2
7) Motor power: 90W/220V
8) Heat lamp power: 800W/220V
9) Lamp: 9pcs
10) speed:0~10m/minstepless speed regulation

HC-IRD-39118 Far infrared tunnel dryer
1) Conveyer width: 39.3inch (1000mm)
2) Heat length: 118.1inch (3000mm)
3) Body length: 177.1 inch (4500mm)
4) Max height of product: 4inch (100mm)
5) Total power: 15KW
6) Fan power: 45W/220V*2
7) Motor power: 90W
8) Heat lamp power: 1000W
9) Lamp: 15pcs

HC-IRD-39188 Drying Oven with IR conveyer
1) Conveyer width: 39.3inch (1000mm)
2) Heat length: 188.9inch (4800mm
3) Body length: 259.8 inch (6600mm)
4) Max height of product: 4inch (100mm)
5) Total power: 22KW
6) Fan power: 45W/220V*3
7) Motor power: 90W
8) Heat lamp power: 1000W
9) Lamp: 22pcs

HC-IRD-39236
1) Conveyer width: 39.3inch (1000mm)
2) Heat length: 236.2 inch (6000mm)
3) Body length: 295.2 inch (7500mm)
4) Max height of product: 4inch (100mm)
5) Total power: 30KW
6) Fan power: 45W/220V*3
7) Motor power: 90W
8) Heat lamp power: 1000W
9) Lamp: 30pcs

Application / Models

Power Supply: 380V/50HZ 3 PHASE
Standard Certificate: ISO9001-2000
Country of Origin: Guangdong, China
Payment Terms: T.T, PayPal, Western Union or L/C
Lead time: Within 5 days when get buyer’s payment or deposit
Shippment: By DHL, FedEx, EMS, UPS, by air or by sea
Guaranty: one year

Other Information

Packing: by wooden case
Packing size: 1000*1100*700mm
Packing volume: 0.8 CBM
Gross weight: 100KG
Model:HC-IRD-3159
Packing size:2000*1150*700mm/1pc (250KG)
1100*900*650mm/1pc (130kg)
Packing volume:2.2CBM

Model:HC-IRD-39118
Packing size:3100*1300*700mm/1pc (320KG)
1300*1000*650mm/1pc (180kg)
Packing volume:3.6CBM

Model:HC-IRD-39188
Packing size:2500*1350*700mm/2pc (320KG)
1300*1050*650mm/1pc (180kg)
Packing volume:5.5CBM

Model:HC-IRD-39236
Packing size:2800*1300*700mm/3pc (320KG)
1450*1300*650mm/1pc (180kg)
Packing volume:8.7CBM
