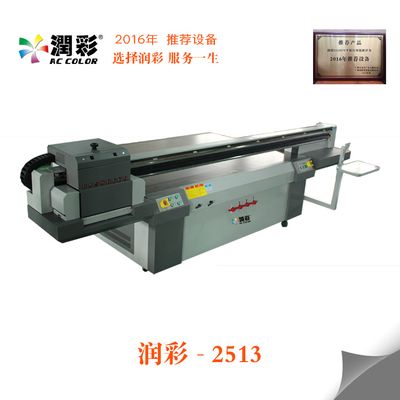

PVC/EVA Mobile Cover UV Printer 2513 Machine with Large Format Printing Size

Product Description

Printing Size 2500mm*1300mm
Print Head(s) 6pcs TOSHIBA print heads, CE4 series 636holes*2listl; smallest ink drop 5pl
Printing Colors C,M,Y,K,LC,LM+W
Printing Height 100mm
Printing Weight Non-destrutive Precision Weight 100KG
Print Speed Production Mode:300x1200dpi 36 sq/hr
High Quality Mode:300x1800dpi 18m sq/hr
High Accuracy Mode:300x2400dpi 9m sq/hr
Ink System UV Curable Ink(C,M,Y,K,LC,LM+W)
Automatic Cleaning System Automatic Cleaning Function
Print Head(s) Technology Piezo Inkjet Printing Ink
Ink Cartridge Continuous Ink offering/Capacity: 1000ml
Power Supply 220V/3000W, 50HZ/60HZ
Applied Materials Ceramic, Acrylic, Wood, Craft, Painting, Glass, Metal,Crystal,Leather,PVC,ABS etc.
Curing System LED Light Curing System
Color Management Admitted to International ICC Standard, with Curve Line Function.
Image Format TIFF,JPEG,Postscript 3,EPS,PDF etc
Operating Platform Vacuum Adsorption Platform (Alloy Aluminum Honecomb)
USB USB Connector USB 2.0 Connector/USB3.0 Connector
Operating Environment Temperature:20-50degree,
Humidity:40-60%,Dust-free room
Guide Rail Square Linear Guide Rail
RIP Software Output Ultraprint
N/W. 1400KG
Equipment Size: 1450*4402*1388(mm)

Product Feature

The printed products are with the feature that the ink can be dried immediately with high resolution under our
LED curing system once the printer is stop working

Product Specification / Models

AC-T2513

Application / Models

The printers designed and produced by our company are applied
in various industries: decoration, advertising, ceramic, glass, mental, plastic, leather,
wood etc. In a word, any products you see in flat form can be printed via our UV flatbed printer.

Other Information

Our main products include universal flatbed printer, UV printer, Eco-solvent printer, glass inkjet printer,
ceramic inkjet painting printer and so on.
