Flexo Printing Machine

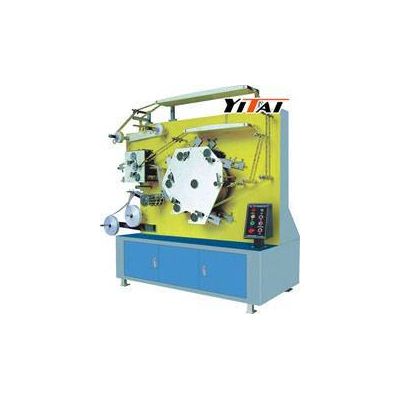

1). Product name: YTW-P 6032D Flexo Sticky Printing Machine



2). Characteristices:

1 .Adopts ceramic mesh roller to convey ink.

2. Magnetic powder brake and slutch control the feeding and rolling or discharging. It can be equipped with automatic color register controller.

3. Each printing unit adopts 360-degree registering adjuster.

4. Each printin gunit is equipped with an assemble of auto infrared drying Installation.

5. The inking roller can depart fromth emachine and rotate at low speed In order to keep the ink from drying when its stops.

6. The main motor adopts stepless governor converter.

7. It can finish the printings like from feeding, printing, front and back printing, polishing, auto infrared drying, laminating, transverse cutting and rolling in one processing. It is a choice equipment to print high-grade self-adhesive glue tape trademarks.

8. It can be equipped with polishing device and UV drying-coating glue Device.

3) Technical Variables:

ModelYTW-6032CYTW-P6032DYTW-P6042D

Printing speed50m/min50m/min50m/min

Printable color4colors5colors5colors

Max web width330mm330mm430mm

Max printing width320mm320mm420mm

Max feedging diameter600mm600mm600mm

Max rolling diameter550mm550mm550mm

Printing circumference175-320mm175-320mm175-320mm

Registering precisionu00b10.10mmu00b10.10mmu00b10.10mm

Overall dimension2000x1100x2100mm2000u00d71100u00d72700mm2000u00d71200u00d72700mm

Weightabout1800kgabout1900kgabout2000kg

Thickness of paper60kg-250kg60-250g60-250g
