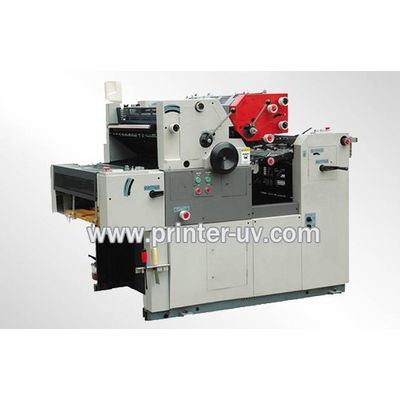

double colour news paper printing offset printer

Cylinder type: 90 u00d7 345mm Max.

1. Easy operation: The machine adopts pneumatic clutch supported by air pump.The touch screen let operation very easy.

2. Exact registration:Front paper stopper of registration, both side-pulled-paper stopper, paper feeding horizontal registration, paper feeding table slight adjustment,plate cylinder registration of up/down.

3. Quick plate registeration: The plate can be moved axially, which make registration convenient.

4. Dampening and inking separated:Dampening system is separated from inking system,which can adjust dampening and inking flexibly and content the requirement of different printing items for dampening and ink. This is good for multicolor printing.

5. presetted counter:This machine adopts electromagnetic presetted counter. If the quantited printing work finishes, the paper feeding stops automatically.

6. Double sheets detection:It can avoid the problem such as double sheets,paper overlap and non-stop.

7. The whole machine is controlled by PLC. There are functions such as auto press, auto stop while paper jam, powder jet, step forward and backward. Ink auto supply system let the color of printing be more uniform.

8.There are forme 3 inking rollers and 2 forme dampening rollers. We improved the order of inking rollers. Three ink vibrators can drives fastly back and forth.Thus the inking supply can be transferred fastly and uniform.

ModelRC-CY247 RC-CY256

Max. sheet size470 u00d7 365mm 560 u00d7 390mm

Plate size470 u00d7 395 u00d7 0.15mm560 u00d7 420 u00d7 0.15mm

Blanket size470 u00d7 420 u00d7 1.95mm560 u00d7 460 u00d7 1.95mm

Usable paper28-250g/m2 28-250g/m2

Ink roller14pcs (3 forme inking rollers)14pcs (3 forme inking rollers)14pcs (3 forme inking rollers)

Dampening roller5pcs (2 forme dampeninging rollers)5pcs (2 forme dampeninging rollers)

Molletonthick: 76 stitches; thin: 44stitchesthick: 76 stitches; thin: 44stitches

Printing speed2000-8000 sheet/hour2000-8000 sheet/hour

Power supplysingle-phase: 220v,50hzsingle-phase: 220v,50hz

Main motor1.5kw1.5kw

Air pump motor0.55kw0.55kw

Machine dimension2350(L) u00d7 880(W) u00d7 1350(H)mm2350(L) u00d7 950(W) u00d7 1350(H)mm

Net weight1150kg1330kg

Packing case dimension2450(L) u00d7 1000(W) u00d7 1450(H)mm2450(L) u00d7 1100(W) u00d7 1450(H)mm
