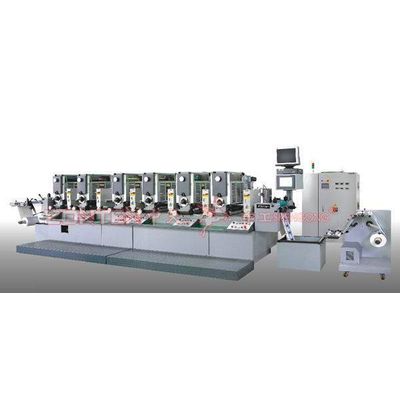

SUPER-320 Intermittent Letter Press High-speed Label Presses

Technical specification :Max. Web width 310mm Max. printing width 290mm Printing repeat 50-260mm Color 2-8 color Thickness of substrate 0.1~0.3mm Machine speed 30-250r/min Max. unwind diameter 700mm Max. Rewind diameter 700mm Total capacity 17.3KW Not Including UV Power 380V/AC. Three-phase 50/60H 50A 17.3KVA Overall dimension(Lu00d7Wu00d7H) 6800u00d71600u00d71400mm Machine weight 6000kg/6 colors

Characteristics :1. Adopt paper reciprocating mode. One printing roller could do the job regardless the repeat size.2. Adopt servo control system to control every roll in printing system, which make the optimized performance of machine .3. Optimization of ink rollers could prevent bar marking and ghosting to improve the printing quality.4. The supply of ink will change proportionally with the speed of the machine to make printing result better.5. Malfunction of the machine would be shown on the screen automatically, which will shorten the repair time.6. Paper unwinding, printing, UV vanish, rotary diecutting, waste removal and rewinding can be completed in one pass.7. This equipment is suitable for printing middle & upper class labels in large ,middle and small batch of production
