Six Color Fully Automated Soft Tube Screen Printing Machine with UV

Six Color Fully Automated Soft Tube Screen Printing Machine with UV

High speed, easy operation, PLC control and Touch screen. Specially designed for the soft tubes, caps and cosmetic container.

Technical Characteristic:

1. PLC control, touch screen operation panel.

2. Six colors, optional flame or corona surface treatment, gloss surface treatment, UV drying system.

3. Rotary design, mechanical drive and computer control system with mechanical, electric and pneumatic system.

4. The machine is applicable to different printing and packing requirements.

5. This machine can cooperate with custom-made auto loading and auto treatment system.

6. The machine can be installed extra cursor auto-positioning device, surface pretreatment system and gloss treatment (before or after printing) system.

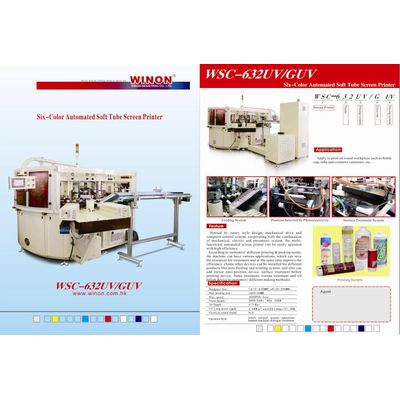

Model:WSC-632UV/GUV

Printing Color:6

Printing area (mm):160x160mm

Printing Speed (hr):3000 PCS/Hour

Printing Product Size (mm):(dia.13-dia.50mm) x H(20-200mm)

Precision:

Power Supply:380V/50Hz 85A 32KW

Voltage:380V

Air Supply:5-7 BAR

UV Lamp Power Supply:3.6KW of Each x 6 Lamps = 21.6W

Automatic Grade: Fully Automated

CONTROL PANEL:Touch screen , PLC

Print on round workpiece such as bottle cap, tube and cosmetic container, etc.
