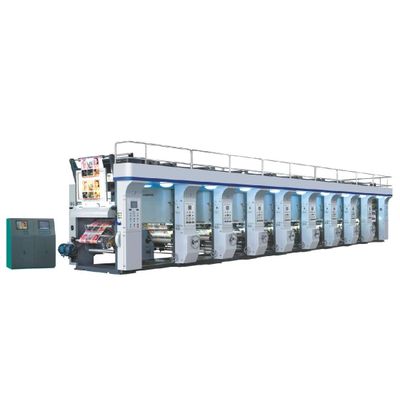

TYDN-A GRAVURE PRINTING MACHINE

This printing machine is suitable for many kinds of plastic film,paper etc roll material printing, three-motor tension control in closed loop, computer register, shaftless, pneumatic blade, inverter adjust speed, steady tension, actually register, high capacity, reasonable design, easy to operate and realiable quanlity.

Note: can according to clients requirement to equip: obverse and inverse print

structure,five motor tension,seven motor tension,horizontal color register structure

Main characteristics

1, Double air-shaft in rewinding,high speed auto receiving material without stop

2, Double air-shaft in unwinding,semi-automatic cutting and receiving

3,Air cooling device (Options: water cooling device)

4, three motor system

5, Float roll type double cylinder embossing

6, Shaftless type load plate

7, Double layers cycle hot oven to dry

8,Computer register system(brand according to clients)

9, Inspection unit(brand according to clients)

10, Extra options: obverse and inverse double printing device

11,Film tension adpots three motor sychronous system(main motor,

unwinding traction,rewinding traction)

Main Technical Parameters:

TtypeTYDN-A8800TYDN-A81100

Diameter of core76mm76mm

Diameter of unwinding600mm600mm

Diameter of printing plate110-300mm110-300mm

Printing width 800mm1100mm

Precision of register0.15mm0.15mm

printing speed60-120m/min60-120m/min

Overall dimensions14500x2150x2850mm14500x2450x2850mm

Total power135kw155kw

Weight 17000kg 20000kg
