solvent printer with Spectra Polaris print head

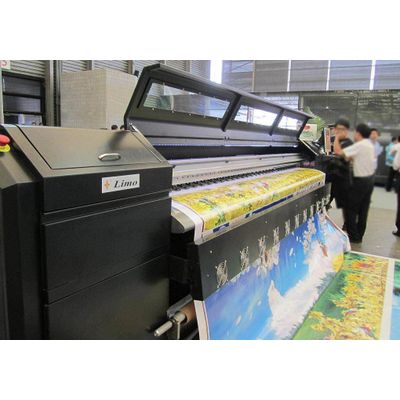

Solvent Printer with Spectra Polaris 512 Printheads(Limo Heavy Duty)



High speed / High Saturation

4 pieces of well known Spectra polaris 512 durable print heads

Deliver high saturation, high speed over 90m² /hr for outdoor billboard

Precise ink positioning improve printing effect



New innovation

CNC milled aluminum brick print head mounting base - Never distorted

Chamfered mounting base design avoid media search

User friendly print head physical position and angle adjusting

New CNC milled aluminum capping block seal print head tightly



Multifunction

The best new improved control boards to protect print heads

Front and Mid. Heating system with PID temperature control unit

Taking up / Feeding system with patented pressure bar to maintain long feeding

New developed sub tank system to ensure good ink supply



Easy control

Aprint Rip User friendly control console software

USB high speed interface for large volume data transferring

Programmable build-in Vacuum cleaner to clean print head surface.

Model No. Solvent Printer with Spectra Polaris 512 Printheads(Limo Heavy Duty)

Printhead Type Spectra Polaris PQ512 Print Head

Quantity 2 pcs 4 pcs

Resolution (dpi) 720 x 1200 dpi

Media Width 3.2m (125.98u201d )

Types Frontlit, Backlit, Vinyl, Mesh, One Way Vision, Window Film, Banner

Ink Type Solvent Ink

Color 4 color CMYK

Speed 2 pass 48m2/hr 96m2/hr

3 pass 35m2/hr 68m2/hr

4 pass 25m2/hr 48m2/hr

6 pass 17m2/hr 35m2/hr

8 pass 13m2/hr 25m2/hr

Feeding and Take-up Automatic Media Feeding (fixed) & Take-up System (optional)

Cleaning System Positive Pressure Cleaning, Anti-Clogging Flush Function & Capping System

Heating System 3 way intelligent heater

Cooling System Equipped

Environment Temperature: 20C-28C Humidity: 40%-70%

Rip Software Aprint software support English Window System

Printhead Height 2.5 - 4.5mm (adjustable)

Interface USB2.0

Power AC220V/50HZ or AC110V/60HZ (2400W)

Packing Size L4, 600mm x W860mm x H1100mm

Weight 380kg
