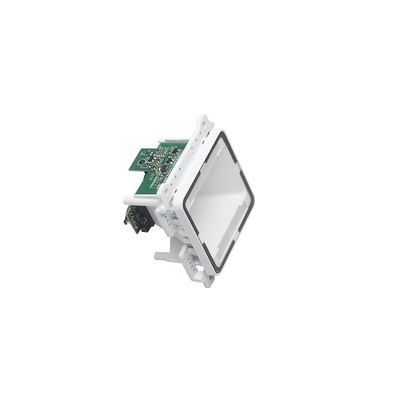

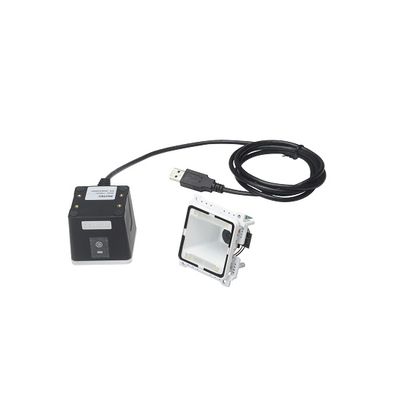

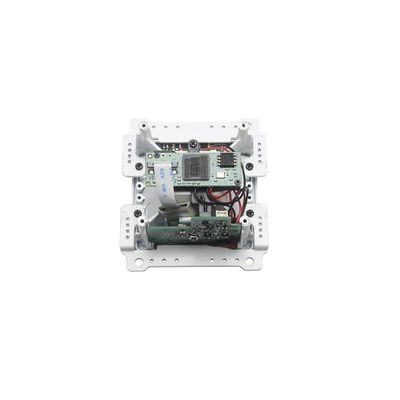

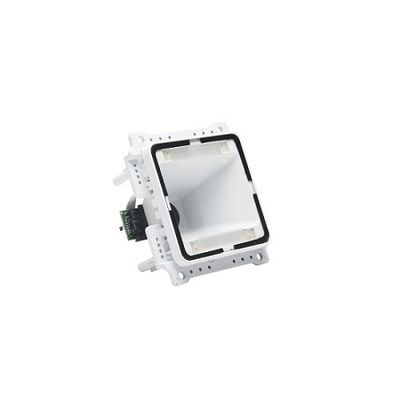

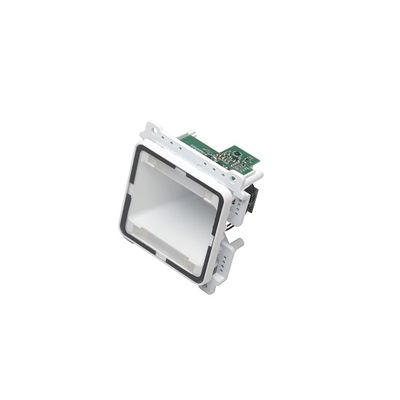

Barcode Scan Module- 2D SME560J

Model Name

SME560J

Description

Stationary 2D barcode scan module

Engine

RIOTEC 2D engine

Scan Mode

Presentation mode

Illumination Element

White LED

Depth of field

 13 mil UPCA: 320 mm

Sensor

CMOS (640×480 pixels)

Best resolution

4mil Code 39

Indicators

LED & Beeper

Auto-sensing

Up to 200 mm

Print contrast

30% or more

Symbologies

1D: Code 128, EAN-13, EAN-8, Code 39, Code 32, UPC-A, UPC-E,
Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128,
GS1 Databar,
2D: PDF417, QR Code, Micro QR Code, Data Matrix, Aztec

Interface

USB HID, USB Serial (by request), RS232 (by request)

Connection port

micro usb / 1.25mm wafer 5pin / FPC 12 pin

Input voltage

5 V/DC ± 5%

Current - operating

190 mA  max

Dimension (L x W x H)

65.04 x 59 x 45.9 mm

Weight

24 g +/- 5 g

Case material

ABS plastic

Temperature-operation

-15°C to 55°C
(This figure is when the module installed inside of the finished products.)

Temperature-storage

-30°C to 70°C
( This figure is when the module installed inside of the finished products )

Humidity-operation

up to 95% relative humidity, non-condensing

Ambient Light

100,000 lux max

  4 mil Code 39

  5 ~   90 mm

  5 mil Code 39

  0 ~ 120 mm

13 mil UPCA

 20 ~ 320 mm

10 mil DataMatrix

  0 ~ 135 mm

20 mil QR code

   0 ~ 240 mm
