Union Anti Static Brush has good heat-resistance

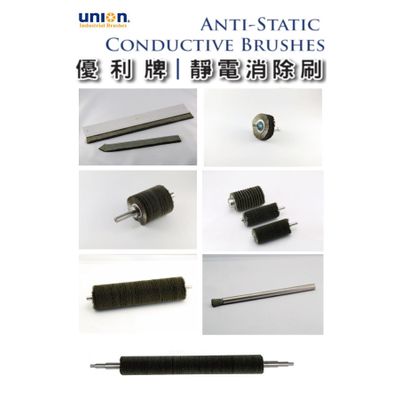

Union – Anti Static Brushes

Ordinary chemical fibers and plastic products are always having problems of static electricity, and most of ways to rid of static are metal ground connection.                                                                                                                                                                         However, partly of chemical fiber is nonconductor, and the metal wire is easily scraped the products. As a result, we push out the product – Union Anti Static Brushes.

UNION Anti Static Brush is made of 66 Nylon base interspersed with electric conduction materials, not plating electric conduction on the fiber surface brush.

Union Anti Static Brush has good heat-resistance, chemical resistant and can bring high electric conductivity.

Materials Properties:

1.          Good electric conduction, impedance value is depend on wire diameter from 104 – 109ΩCm & 10-1 – 10-2ΩCm

2.          Softened Point: 180u2103

Extremity: 215u2103

Continuous enduring temp.: 100u2103

3.          Chemical resistant, acid and alkali resistant the same as nylon.

Materials Diameter:

1.          Common Wires – Resistance 104 – 109ΩCm

Diameter-range : 0.15mm,0.25mm,0.40mm,0.50mm

2.          Super fine wire – Resistance 10-1 – 10-2ΩCm

Diameter-range : 0.035mm,0.045mm
