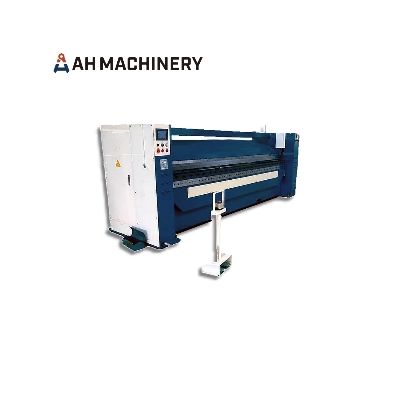

AH Metal Straight Brake

AH Machinery supplies full range of Hydraulic Metal Straight Brake, Box and Pan Brakes, Folding Machine, Molding Machine made in Taiwan, customized specifications are available.

/APPLICATIONS/
aerospace, automobile refit, aviation repair, farm implement, filing cabinets, larger industrial metal boxes, metal storage cases, parts assembly, product finishing, ship, small retail decorative boxes and so on.

/SPECIFICATION/
- Suitable for: SUS 304, SS 400, SPHC
- Type: Manual, Hydraulic
- Bending Thickness [mm]: 1.0, 1.2, 1.6, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 6.5
- Bending Length [mm]: 1232, 1500, 1855, 2000, 2465, 2500, 3000, 3100, 3075, 3700, 4000
- Rake Angle: 0-135°
- Main Motor [HP/KW]: 4 / 3.6, 5 / 3.6, 7 / 5.5, 9 / 7.4

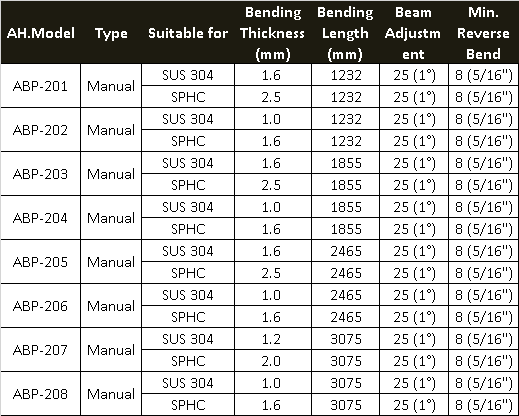

/AH Manual Metal Straight Brake Specification/

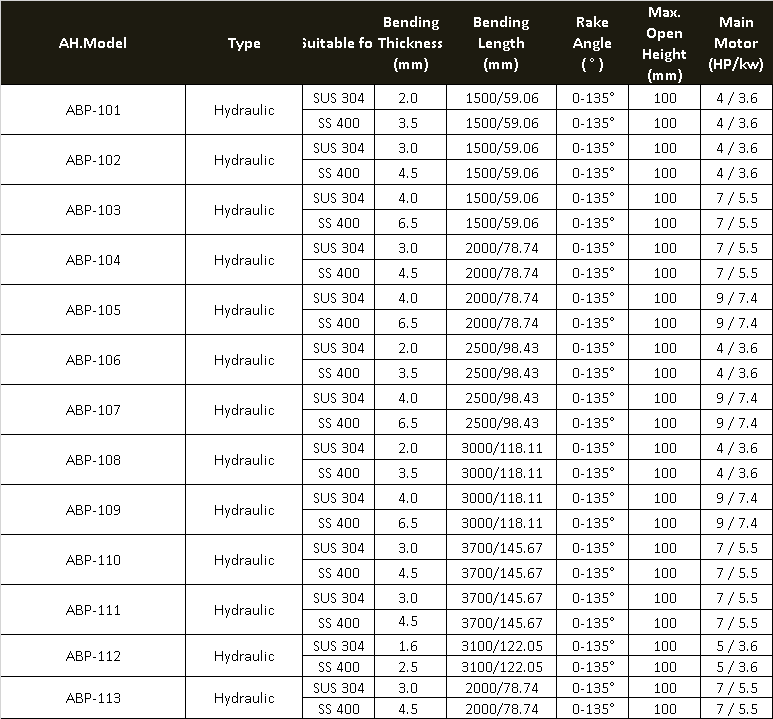

/AH Hydraulic Metal Straight Brake Specification/

/FEATURES/
#Customized_specifications_are_available.
#High_caliber_and_Accurate.

Welcome to contact us!
A Homia will satisfy you as long as you give us a try!
