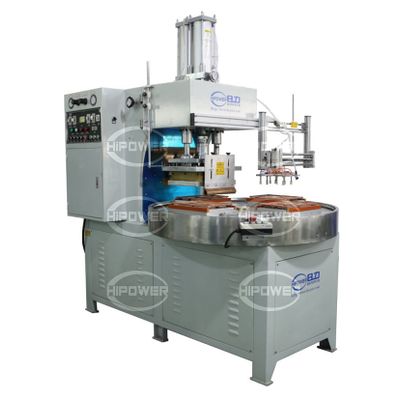

HR-15KW-4AC Turntable high frequency welding and cutting machine

Product Description

HR-15KW-4AC Turntable high frequency welding and cutting machine with 4 stations

Product Feature

Character

The design loop of HQ oscillation under Low energy consumption, self-developed of fully automatic following-up mechanism of control power to keep the same standard of each moulding and power consumption of 15-25% off

Welding and cutting simultaneously (optional configuration)

Adjustable cutting pressure,1-15 ton,capable of prearrangement,realible and stable in output.

Automatic working-plate and circumrotation,optional positions 3-6,working more efficiency.

Fixed oith precision decollator,accurate-orientation,error+-10um.

Adopting high sensitive anti-sparkle device,avoid damaging the mould.

Automatical Feeding and taking materials under the control of manipulator

European-model squareness high frequency vibration box,more realible and stable in output.

Product Specification / Models

Technique specifications
Model: HR-15KW-4AC
Power : 15KW
Voltage : 380V 50/60Hz
Frequency : 27.12MHz
Input power : 25KV
Rectifier : SILICON DIODE
Oscillation tube : 8T85RB
Max pressure : 25T
Operation mode : oil pressure
Max gap between electrodes : 200MM
The size of active horn : 100MM
The size of upper electrode : 400*500 mm
The size of lowwer electrode : 400*500 mm
The range of tempreture : 30~200 Adjustable
welding time : 0~10S Adjustable
Productivity : Equal or less 5000times/8h
Net weight : 1.6T
Overall dimension : 2250*1550*2200 mm

Application / Models

Applied to welding and cutting technics with APET,PETG,GAG environmental protection materiale,toothbrush packing with PVC PET
