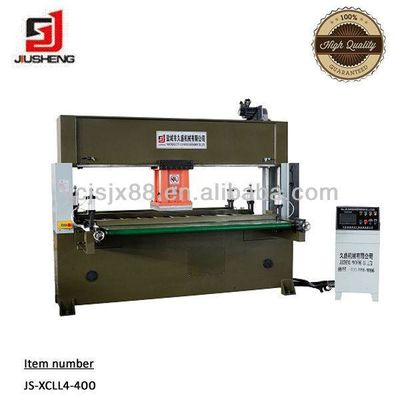

XCLL4-400 Automatic Move head Cutting Machine

Automatic Move head Cutting Machine

1.excellent operating visual field;

2.high speed machine

3.three choices

4.offer OEM

A, the "PLC+ coder" human-machine interface of the digital control operating system, can realize automatic feeding, automatic die cutting, there are five kinds of patterns mode selection, automatic setting of blanking times, high precision, the positioning accuracy can reach 0.2mm, material saving, high work efficiency, reduce labor intensity.



B, the PLC program control center of operation instruction set with memory performance, in power after the power supply is cut off or after classes are not affected, easy to operate again.



C, the oil system of special design, ensure identical cutting depth for each time.



D, the operation mode can have three choices: manual, semi-automatic, fully automatic, flexible. The workers need only to pick up the finished materials, with labor intensity reduced and work efficiency enhanced.



E, the punch can automatically positioning, automatic translation, die cutter is fixed by the electromagnetic sucking disc, without setting of the knife mold, high die cutter can cut, convenient operation.



F, automatic lubrication system, ensure that the machine precision and improve service life.



G,the precise lead screw driving unit is adopted for accurate movement and positioning and stable operation.

Type

XCLL4-400 Automatic Move head Cutting Machine



Max cutting power

400KN



Cutting speed

0.18m/s



Range of stroke

5-130mm



The distance between top and bottom plate

60-160mm



Traverse speed of punching head

50-250mm/s



Feeding speed

20-90mm/s



Size of the upper pressboard

300mm



Size of the lower pressboard

1600u00d7500mm



Power

3KW

The machine is suitable for continuously cutting large batch of regular (or of the same specification)nonmetal rolled materials by forming cutter. It is especially suitable for such industries as sports articles (balls), sand paper, medicine and etc.

Exported countries

Currently, we are pleased to export our products to clients throughout the world, including India, Indonesi, Australia, Malaysia, Vietnam ,Taiwan and so on.





We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us. We can produce the product under your brand name, also the size can be changed as your requirement.

Factory direct sale; Guarantee Period one year.

Note: we can produce different types, tons and cutting area of machine according to your demand.
