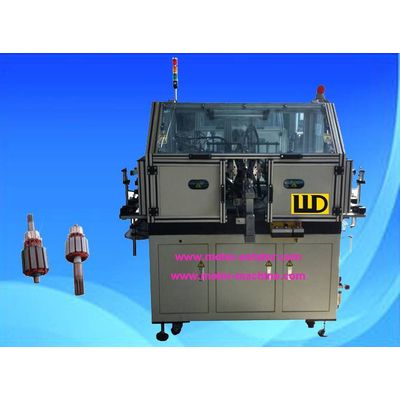

double flyers armature winding machine

armature winding machine is designed to do winding for the armature with hook type commutator

Three winding modes: single slot-single hook, single slot-double hook and double layer winding. It could do twice winding in one slot, four times winding in the two adjacent slots. It has automatic treatment for wire broken, 2 settable sequences is: winding before broken, or broken before winding.

Production parameter for 100nos armatures could be stored

Display parameter, including shift output, total output, consuming time, etc.

Automatic alarm if any abnormal condition occurs

Single action, automatic and stepping operation could be switched

Steady fixture, up and bottom protective tooling and protective wire hooking device

Wire diameter range: 0.16-1.2 mm

Armature diameter: 20-85 mm

Stack length: 10-70 mm

Shaft diameter: 3-15 mm

Shaft length: less than 250mm

Armature Slot: even slot

Turn number: 0-9999

Commutator diameter: 8-40 mm

Winding speed: 0-2500 rpm

Winding motor power: 1.5KWX2

Angle detecting speed: 0-3000 rpm

Angle detecting motor power: 0.75KWX1

Production efficiency: 900pcs/8hours (based on armature with 12slots 24hooks, 20turns)

Air supply pressure: 4-6 Kg/cm2

The machine total power: 4.0 KW

Voltage: three phase AC380Vu00b110%, 50/60 Hz

Weight: 1100 Kg

Dimension: 2000X1000X1800mm

power tool armature, home appliances DC motor armature,
