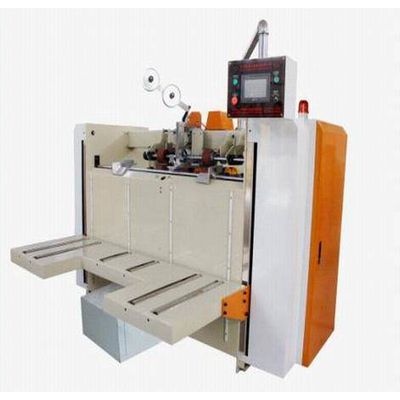

BDJ-2000B high-speed semi-automatic stitcher

Yaskawa Japan imported dual-servo-driven,accurately precision,mechanical transmission are decreased,which can effectively reduce the mechanical failure rate.

Wei Lun touch screen operation,the parameter ( nail distance,nail number,nail types,tail gate) change conveniently.

The whole control system uses Omron PLC control system.

Electric control the tail gate, the use of stepper motor-driven, size accurate,size-changing is more convenient.

Keys control box uses the Siemens brand.

photoelectric and proximity switches is Schneider brand.The under mold,blades is tungsten steel made in Japan (wearable)

entire nail heads group made of special steel , computer gong is precision making.

requirements of different kinds of nails.changing carton size and adjusting nails can be completed just one minute, saving time and easy operation.

can nail box with or without lid (with or without lid box should be informed to maker before machine making).

Department of automatic counting , feed units equipped with photoelectric sensors,when feeding,table automatically rise.

rear section with automatic counting function,the number of finished carton can be set (1-99) and transport to the machinery end,convenient for bundled package.

Mechanical speed: 500 nails / min

nails from :30-120mm (adjustable)

table lift Height :: 900mm

machine size: Host 2.8x2.7x2 m

Weight: 2T



Max.(L+W)x22460mmLength of machine2800mm

Min.(L+W)x2606mmWidth of machine2600mm

Max.(W+H)x21515mmweight2000kgs

Min.(W+H)x2300mmSpeed400 stitches/min

Height of feeder 900mmStitching distance 30-60mm

Power6HPNails NO. 1-99 nails
