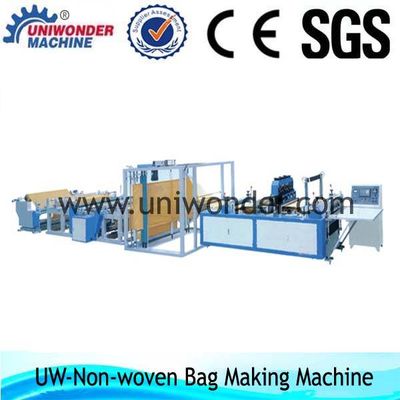

RT-F Model Non-woven Fabrics Handle Bag Making Machine

Feature:

This machine is suitable for producing 15g-60g non-woven fabrics shopping bag .flat data bag, food packaging bag, shoes bag, leisure bag etc. soft packaging bag.



Performance and Characteristics:

1. The entire machine is controlled by microcomputer and the material-dragging is done by step-type motor.

2. Automatic counting and fixable alarming through counting.

3. Synchronous punching under automatic air pressure, automatic constant temperature, stopping automatically when the feeding is stopped.

4. Feeding with photoelectric control and automatic rectifying deviation.

5. Arbitrary fixed-length, accurate and stable step photoelectric tracking, stopping automatically when the cursor is lost after product three bags.

6. This machine is suitable for producing non-woven fabric soft-loop handle bag and flat bag.

7. The side bottom is welded with roll-type by ultrasonic, hence especial fastness and evenness.

Main parameter:

ModelRT-F500RT-F600

Production speed(PCS/min)20-7020-70

Bag-making width(cm)10-8010-80

Bag-making thickness (g)30-8030-80

Bag-making length(cm)15-4215-52

Voltage (V)380/220380/220

Total power(KW)67

weight(kg)18501900

Size (mm)9500x1700x18009500x1800x1800
