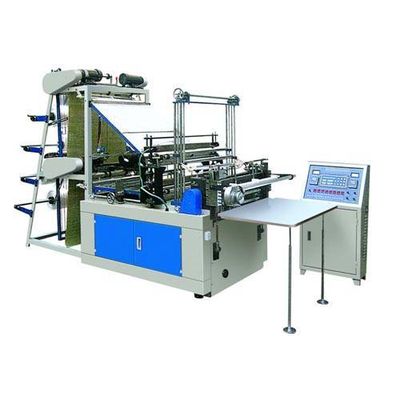

DFJ-600/800 Heat-sealing and Cold-cutting Bag Making Machine

USE:

It is suitable for continuously automatically cutting HDPE,CDPE or PP flat pocket,waist pocket and amnia pocket,also applied to the breadthwise cutting for coiling block material such as hot shrinkable film brand and paper brand.





FEATURE:

1.The cutting knife adopts spring minitrim installation,which make is easy for adjusting clearance between the above and the below cutter knife while manufactrue products with various thickness.

2. The seal cutter knife may be adjusted conveniently and be wholly overturn by 180 degree,which make it convenient for cleaning and replacing adhesive plaster.

3.Adopt digitize electric,matched with high-precise and high quality mechanical parts,fix length at will,so as to reach the purpose of high speed,saving energy and durability.

4.Synchronous seal and cold cut,no pull feeding,firm back cover.

5.Whole alarm installation,automatically shutting down while the printing position is not correct,which reduced waster.

6.Film feeding adopts photoelectricity control and stepping electromechnical drawing material,equipped with adjustment installatioon,which contribute to convenient operation and accurate bag making.



Model DFJ-600

Max sealing and cutting breadth 600mm

Max sealing and cutting length: 60-1000mm

Sealing and cutting thickness: 0.05-0.10mm

Error of length u00b10.5mm

Bag-making speed 35-200PCS/min

Operational power supply 220V

Gross power 3KW

External dimension(Lu00d7Wu00d7H): 3300u00d71030u00d71490mm

Weight of complete machines 600KG
