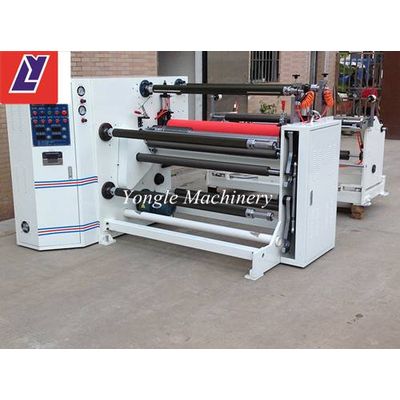

YL-405 Precision laminating and slitting machine

This machine is suitable for the lamination, slitter and rewinder of all electrical tape, and many function in adhesive, slitting and rewinding. Applicable for PVC film, PE film, Anti-static film, paper, and self-adhesive label. Adopted with air pressure drive and pressure roller so as to assure regular arrangement and no foam. Can add the devices according customer's request.

1.High accuration with the automatic ultrasonic correction when loading and unloading the mother roll.

2. Magnetic device to control the tension of machine, ensure the quality of the products.

3.Upon and down round blade slitting with worm adjustable system. The minimum slitting width can reach to 25mm.

4.The speed of the machine is 0-80m/min. No limited with inverter control the speed.

5.Account the meter automatic. The machine will be stopped when reach the setting length automaticly.

6. The centrifugal fan blowing the edge scrap automatcly.

Technical data:

Width:650mm/1300mm/1600mm

Maximum unrewinding diameter:800mm

Maximum rewiding diamter:400mm

Minimum width:25mm

Size of paper core76mm

Upon lamination roll diameter120mm

Down lamination roll diameter:180mm

Diameter of pressure roll:160mm

Power:4KW

Speed:0-80m/min

Weight:1500kgs

Dimension1980mmu00d72200mmu00d71400mm
