Multi Function packing machine

Shanghai Jump Company's Aseptic Filling Systems offer a highly effective and reliable aseptic method of bulk packaging for high and low-acid food products, including tomato paste, vegetables and fruit juices, purees products.

The Aseptic Filler receives drums or bins through roller conveyors. The containers can be drums in a single line, drums . The operator places the presterilized bag in the container then they are automatically transported under the filling station. The presterilized bag is manually placed under the aseptic chamber in a sterile environment saturated by overpressure steam. The operator pushes the start cycle and automatically the cap is removed, the bag filled with sterilized product and then recapped. The standard measure system is with load cells but also the volume system is available. At the end of the filling cycle, the roller conveyor transports the containers to the exit.

u00a0Features:

1.High production speed achieved by a newly designed head system, improved reliability from a fully PLC controlled self diagnostic operational mode.

2. Greater versatility by meeting various packing standards with different products.u00a0

3 Coordinates well with the tube in tube sterilizer, if some malfunction with the filler, the product will be automatic flow back into the buffer tank before the UHT sterilizer.

4. The use of a hermetically sealed empty bag ensures the bag will remain sterile before it is filled.u00a0

5. High pressure saturated steam is used for sterilization of the fitment, cap and exposed portion of the filler prior to each filling cycle.

6. The sealing of the fill valve on the interior of the fitment keeps product completely away from the package sealing area.u00a0

7. The hermetic heat sealing of the fitment provides a tamper evident closure and a superior oxygen barrier.u00a0

8. The overall aseptic design of the filler allows uninterrupted. Operation throughout a complete tomato/fruit season, maximizing your plant's efficiency

9. CIP and SIP available together with tube in tube sterilizer

parameters:

Capacity: 6-8 tons/hour

Aseptic bag size: 1-220 liters aseptic bag (normal)

u00a0u00a0u00a0u00a0u00a0u00a0u00a0u00a0u00a0u00a0u00a0u00a0u00a0 1-1000 liters aseptic bag (optional)

Steam consumption: 40 kg per hour

Compressed air consumption: 0.3M3 per min (0.8 Mpa)u00a0u00a0

Measurement tolerance by electronic balance: u00b10.5%

Measurement tolerance by flow meter: u00b10.2%

Power: 13kw

Dimension: 3500*2000*2500mm (l*w*h)

u00a0 u00a0

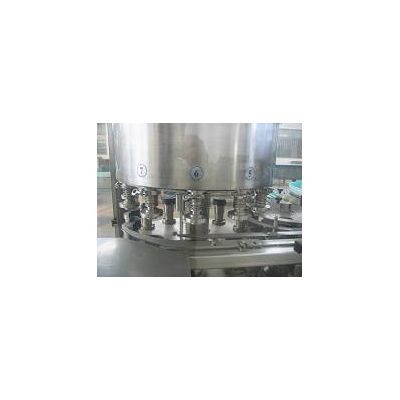

Suitable for filling bottle ,tin can ,and fruit juice ,fruit paste.

Shanghai jump Machinery & Technology Vo.,ltd mainly produce various fruit and paste processing line .

www.sinojump.com



Welcome contact Ms Nancy jing by nancy@sinojump.com
