Vacuum cooling machine for vegetable and fruit processing

Product Description

ICEUPS will design and offer the most suitable machine to clients'requirement

* Vacuum Cooler Machine Condenser System Type:
1) Air condenser:The simplest construction, suitable for small system.Easy to integrate.
2) Water condenser: Low cost, efficient and easy to install. Perfect for most districts climates.
3)Evaporative condenser: Optional system for dry climates, or if water availability is limited.


*Door type of Vacuum Cooler Machine

1) Standard swing door: The simplest construction, manual operation. The ramp for this system is relatively long, and is mounted inside the cooling chamber.
2)Horizontal sliding door: This eletrical driven door is optimal if the cooling skid is placed ,besides the vaccum chamber (one pallet modle and more than 6 pallets systems).
3)Upward lift door:Suggested solution for all systems from 2-6 pallets. Easy installation , easy ramp construction.

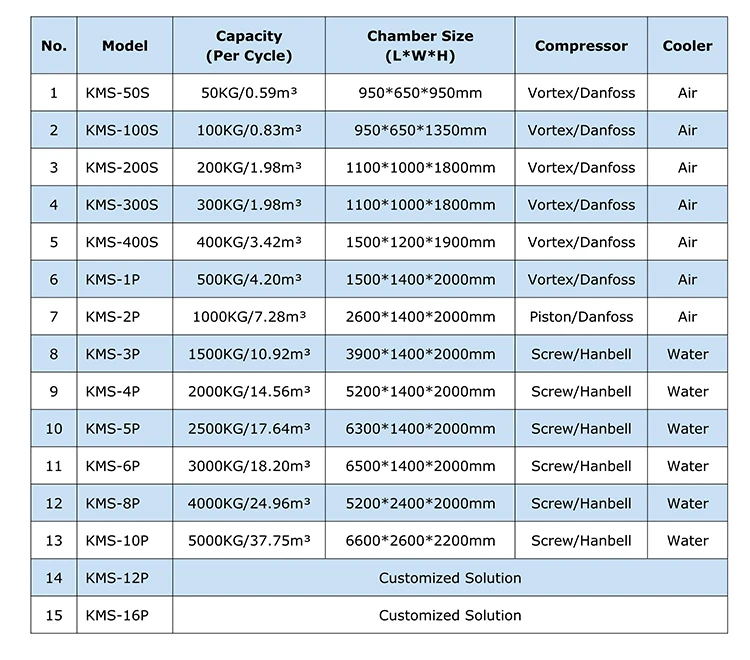

Technical parameter of Vacuum Cooler:
ICEUPS standard range consists of models:1pallet up to 10 pallets, and produce weight ranging from 300 to 5,000 kg. The number of pallets defines the chamber dimensions, and the number of vacuum pumps needed to create the vacuum.

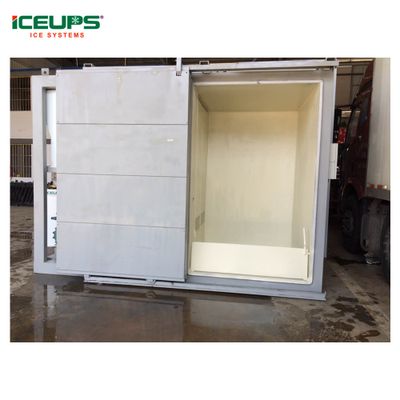

Vacuum Cooler Machine Picture

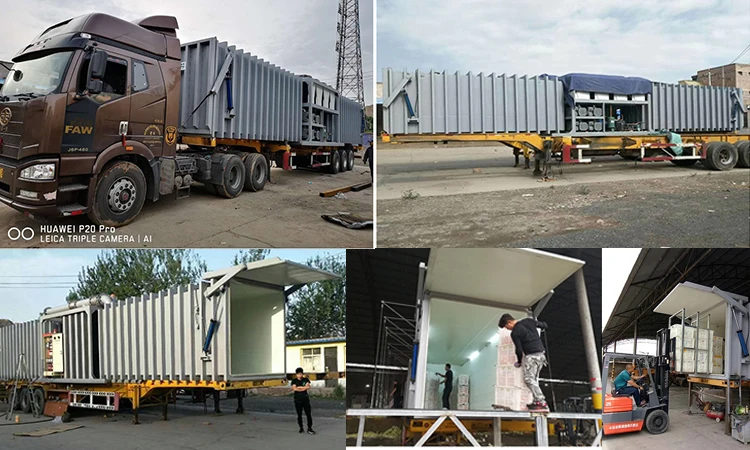

I Vehicle double chamber type

II Landed two chamber type

III One chamber type

Application F

 Product Application of Vacuum Cooler

1.Vacuum Cooler is the quickest and most cost-effective cooling system for vegetable, fruits, flowers & more.

2.Vacuum cooler, which can strongly improve your product quality and at the same time reduce your cooling costs, is now becoming an acceptable investment for almost all vegetable growers!

3.Vacuum Cooler cools fresh product quickly and uniformly in large loads within 15-30mins/cycle, also suitable for packed produces.

ICEUPS will design and offer the most suitable machine according to clients'requirements.
Vacuum Cooler Machine Condenser System Type:
1) Air condenser:The simplest construction, suitable for small system.Easy to integrate.
2) Water condenser: Low cost, efficient and easy to install. Perfect for most districts climates.
3)Evaporative condenser: Optional system for dry climates, or if water availability is limited.

Door type of Vacuum Cooler Machine

1) Standard swing door: The simplest construction, manual operation. The ramp for this system is relatively long, and is mounted inside the cooling chamber.
2)Horizontal sliding door: This eletrical driven door is optimal if the cooling skid is placed ,besides the vaccum chamber (one pallet modle and more than 6 pallets systems).
3)Upward lift door:Suggested solution for all systems from 2-6 pallets. Easy installation , easy ramp construction
