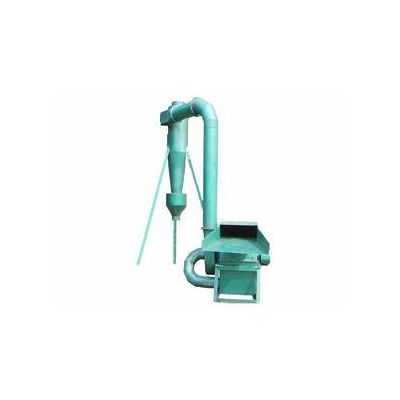

FSJ Series Hammer Mill for Sale

Hammer mill is made up of loading sliding plate, crushing chamber, transporter, etc. There's rotor in crushing chamber, rotor consists of disc and mobile hammer. Sieve and toothed plate are the main working parts of pulverizer too. When the hammer mill is working, the processed material coming into the crushing chamber from the loading sliding plate, suffer the repeated impact and friction by the high speed rotating hammer, as well as the crash on the toothed plate, then the processed material gradually grinded to the needed particle, finally, it will leak through the sieve pore. The dripped material transported to cluster cylinder through conveying fan and transporting pipe, then it will be separated again within the cluster cylinder, powder will be discharged from the below bag, air will be exhausted from above.

It can be used as a multifunctional crusher, the equipment is equipped with dust suction device, there's no powder pollution. Possessing the feature of low temperature, low noise, high efficiency, etc.

Model: FSJ Series

Product fineness(mesh): 4-20

Motor power(kw): 18.5,30,45

Floor area(sq.m): 5,7,9

Number of hammer slice(piece): 20,24,54

Output(kg/h): 450-1000,1000-2000, 2500-3500

Dimension(mm): 1850*1200*920,2600*1600*1250,2900*2100*1500

It's used to crush raw materials with smaller diameter, crushing the cornstalk, branches and other materials whose diameter is less than 50 mm, after crushing, the material fineness can reach 3-5 mm.

Pre-sale service: we provide patient explanation of our products and comprehensive advice about specific products choosing;

On-sale service: we provide technical assist about the installation of the products and we have professionals to your destination to make sure the normal operation.

After-sale service: we have one year warranty period and detailed information about the maintenance of the products.
