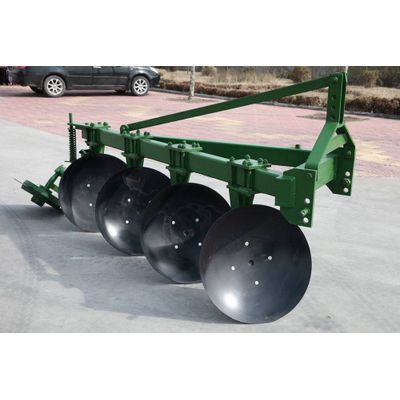

The reversible disc plough is lower cast and higher volume output. The cost for cultivation is paid more and more attention by the customers and to meet this require-ment. Our company developed the series of reversal plough. The plough camber is deeply prefer by the customer all over the country in recent years particularly. The working speed is 8-10km/h.

The reversible plough can be mounted to 15-120 HP tractors with 2 ways of reverse-mechanical (J), and hydraulic (Y). Hydraulic reversed plough can be adjusted for the different width and different tractors, the. Hydraulic system is automatically and the operation is smooth without any troubles.

NumberProduct NameModelMatched Power (Hp)Weight (Kg)Working width (M)Working depth(mm)Qty. of discDia. of Disc(mm)Thickness of disc(mm)

1One-way disc plow1LS-220Yhand12-15700.4020025105

2One-way disc plow1LYQ-22015-241200.4020025105

3One-way disc plow1LYQ-31518-301600.4518034504

4One-way disc plow1LYQ-32025-401800.6020035105

5One-way disc plow1LYQ-42035-502300.6020045105

5One-way disc plow1LYQ-52040-552900.6020045105

6One-way disc plow1LY-32550-804300.7525036606

7One-way disc plow1LY-42575-1055201.0025046606

8One-way disc plow1LY-52590-1206101.2525056606

9One-way disc plow1LY-625100-1507201.5025066606

10One-way disc plow1LY-725130-1609601.7525076606

11Tubular disc plow1LY-23040-503500.6030027106

12Tubular disc plow1LY-33055-704300.9030037106

13Tubular disc plow1LY-43070-1005401.2030047106

14Tubular disc plow1LY-53080-1206501.5030057106

15One-way disc plow1LY-225A40-553700.5030027106

16One-way disc plow1LY-325A60-904800.7530037106

17One-way disc plow1LY-425A80-1105911.0030047106

18One-way disc plow1LY-525A90-1207021.2530057106

19One-way disc plow1LY-625A100-1408201.5030067106

20One-way disc plow1LY-725A150-18010001.7530077106

21Reversible disc plough1LY(sx)-32555-905200.7525036606

22Reversible disc plough1LY(sx)-42580-1006601.0025046606

23Reversible disc plough1LY(sx)-52590-1208201.2525056606

24Reversible disc plough1LY(sx)-625120-15010001.5030066606

disc plough in farm machienry- cultivator

Quick Details



Condition:

New

Type:

Farm Cultivator

Power Type:

tractor

Power(W):

20-150HP

Certification:

CE

Warranty:

Two years

Use:

Farm

Place of Origin:

Shandong, China (Mainland)

Brand Name:

dadi

Model Number:

1LY(SX)

Weight:

200-1500KG

Dimension(L*W*H):

many

After-sales Service Provided:

Engineers available to service machinery overseas

working width:

800-2500mm

working depth:

200-300mm

colour:

many

packing:

Usually iron cage
