Professional factory wood cutting machine for wood processing

Professional factory wood cutting machine for wood processing

1.excellent after-service,high accuracy

2.square or round rails,CE

3.Vaccum or clamps table.widely used

1.Whole machine is welded with seamless steel structure, with aging treatment.

2.Three axes adopt Taiwan HIWIN high precision linear orbit. X and Y axes adopt rack and pinion transmission, fast working, high efficiency . Z axis adopts Germany and Taiwan ball screw,with high precision and long life time

3. Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc.

4. Has the function of re-carving after break point and power failure. Has the function of forecasting process time.

5. Can choose updated DSP or Original Nc Studio computer control system

6

6. Perfect oil-inject system makes maintenance much easier.

7. Good duct-collect function and Considerate Oil plate tokeep the table always clean.With Fumigation-free IPPC wooden case for packaging

8. We provide the DSP operating instruction in English, cutters, software, necessary tools and accessories for free.

Technical Parameter:

DescriptionModelOptional

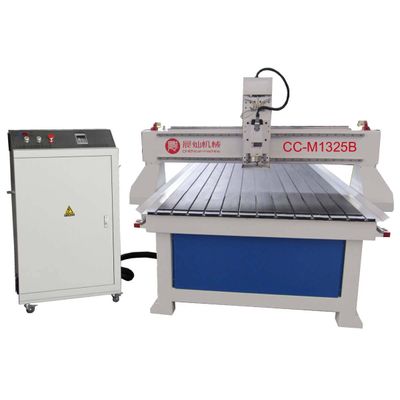

CC-M1325ACC-M1325B

X,Y Working Area1300*2500mm1300*2500mm

Z Working Area200mm200mm300mm

Table Size1440*3040mm1440*3040mm

Resolution0.01mm0.01mm

Max. Idling Speed35m/min35m/min

Spindle Motor Power4.5KW made in China3.0KW made in ChinaItaly HSD spindle

Working ModeStepperSteeperServo

Operating SystemDSP control systemDSP control systemNc studio (Weihong card) control system

Cooling ModeWater-cooling systemWater-cooling systemAir-cooling system

Work-holdingBy suctionBy clamp

Vacuum systemYesNo

Vacuum pump5.5Kw water-cooling Air-cooling vacuum pump

DriverYAKO driversServo drivers and motors

InverterFulling brand inverterSifang brand inverter

Spindle Rotate Speed0-24000r/min0-18000r/min

Wood, plastic, density board, wave board, PVC, acrylic, crystal, aluminum board, light marble and other nonmetal materials and light metal materials.

With more than15years rich experience, we assure you perfect machine quality and after sale service.

Based on mature technical assurance, my cnc router will be surely finish satisfactory work for you.

Any questions or requirement about machine ,directly contact me here online.

I will always be ready to give what you need

-----------------------------------

we work on CNC Router since 1998
