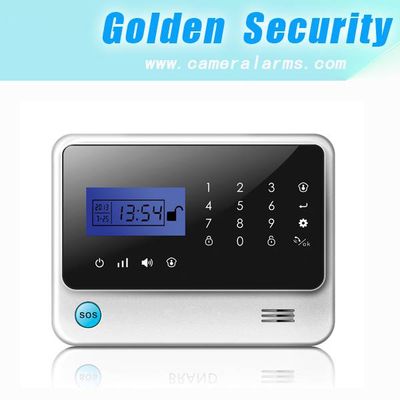

Touch pad GSM Security Smart home alarm system

1.up to 105 wireless alarm sensors.

2.6 Wireless alarm zones

3.Home automation

Touch pad GSM Security Smart home alarm system



1. Touch screen Keypad GSM alarm system with delicate design.







2.8 wired, 99 wireless defense zones







3. LCD display, built-in calendar clock, Full voice prompts,installation setting and daily operation are more easily.







4.Can Store 6 groups of phone numbers : when alarming,the alarm system will make alarm call to these numbers automatically.







Can Store 2 groups of phone numbers : when alarming,the alarm system will send SMS to these numbers automatically.







5.Each zone name can be modified by user .



6.10 second Voice Message recording playback: human recording, synchronous playback for recording effect in audition







7.Defense modes: remote, keypad and non-local remote by telephone, stay-in, timing defense and individual defense in zones







8.Programming of defense zone type: all zones could be programmed via keypad for immediate, delayed, 24-hour and bypass alarm modes







9.Alarm position programming:



Intelligent automatic speech recognition: SOS and fire, gas leak, magnetic contact, hall, window alarm, balcony alarm and perimeter alarm







10.Timing arm and disarm: console features automatic timing arm and disarm







11. Two arm models:



u00a7 Home alarm model: console music and voice alarm, external siren mute



u00a7 Home away arm model: console voice and loud external siren alarm







12.Password recovery: whether console in defense or withdrawal, lost password can be recovered







13. Intelligent learning code, newly added with detector, prompt and efficient, convenient and simple







14. Event log query: console automatically records 45 pieces of all information concerning defense, withdrawal and alarm events







15.Line priority alarm: console will cut busy call and switch to priority alarm in case of alarm during ongoing call, no matter incoming or outgoing call







16.Remote control: through remote phone (cell phone) dial-up, various operations could be realized, like defense, withdrawal and on-site monitoring

Input power : 12V DC/1A



Alarm output : 12V/300mA



Working current : 40mA



Built in battery : 7.2V/600mAH



Working temperature : -10~ +70u00b0C



Storage Temperature : -20~ +80u00b0C



Wireless receiving frequency : 315MHz/433MHz



Wireless receiving sensitivity : -100db



Working voltage:110~240VAC

Operating power: 9-15VDC
